SSI-LXH9SRD-610

Obsolete

Lumex Opto/Components Inc.

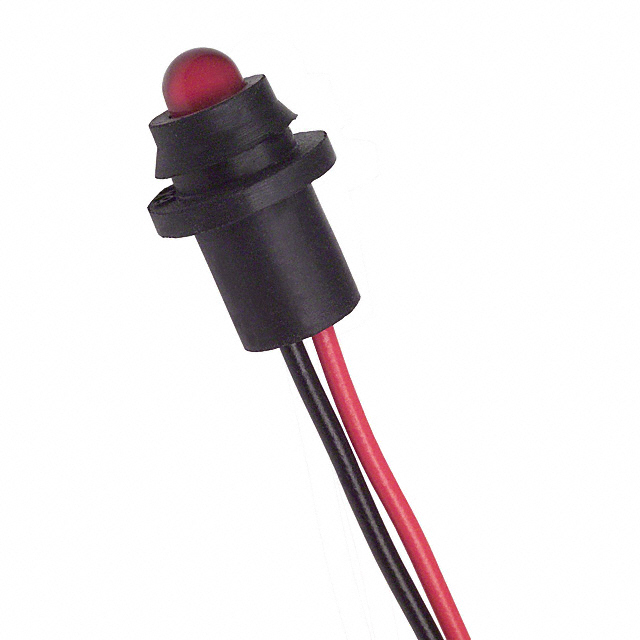

LED PANEL INDICATOR RED 1.7V

Search across all available documentation for this part.

Obsolete

Lumex Opto/Components Inc.

LED PANEL INDICATOR RED 1.7V

Technical Specifications

Parameters and characteristics for this part

Part	Lamp Color	Type	Lens Color	Wavelength - Peak	Voltage	Lens Size	Lens Size	Millicandela Rating	Current	Lens Transparency	Panel Cutout Shape	Viewing Angle	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Style	Termination Style	Termination Style	Termination Style	Ratings	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]
Lumex Opto/Components Inc. SSI-LXH9GD-150	Green	LED	Green	565 nm	2.2 V	T-1 3/4	5 mm	30 mcd	25 mA	Diffused	Round	60 °	0.33 in	8.38 mm	Round with Domed Top
Lumex Opto/Components Inc. SSI-LXH9SRD	Red	LED	Red	660 nm	1.8 V	T-1 3/4	5 mm	80 mcd	30 mA	Diffused	Round	60 °	0.33 in	8.38 mm	Round with Domed Top
Lumex Opto/Components Inc. SSI-LXH9SRD-150	Red	LED	Red	660 nm	1.7 V	T-1 3/4	5 mm	80 mcd	30 mA	Diffused	Round	60 °	0.33 in	8.38 mm	Round with Domed Top
Lumex Opto/Components Inc. SSI-LXH9SRD-610	Red	LED	Red	660 nm	1.7 V	T-1 3/4	5 mm	30 mcd		Diffused	Round	60 °	0.33 in	8.38 mm	Round with Domed Top	609.6 mm	24 in	Wire Leads
Lumex Opto/Components Inc. SSI-LXH9SID-150	Red	LED	Red	636 nm	2 V	T-1 3/4	5 mm	100 mcd	30 mA	Diffused	Round	60 °			Round with Domed Top				DC	0.33 in	8.26 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Panel Indicator Red Diffused 60° 1.7V 20mA Wire Leads - 24" (609.60mm)

Technical documentation and resources

No documents available
