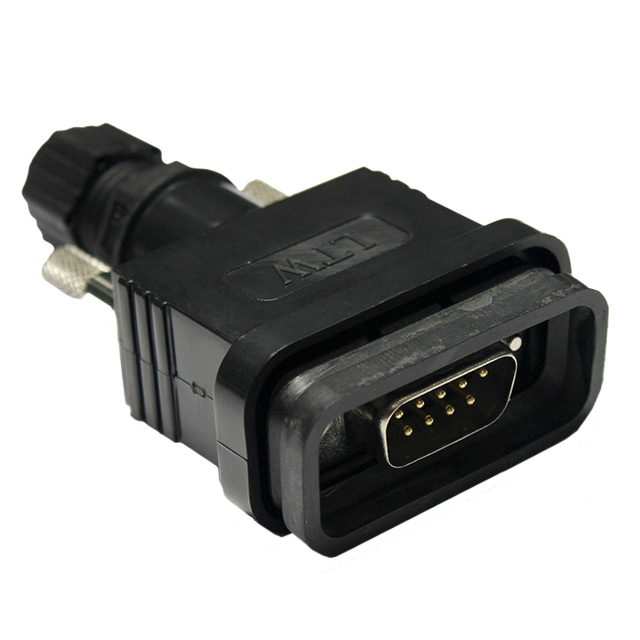

SDB-09BMMA-SL7001
ActiveAmphenol LTW
CONN D-SUB PLUG 9POS SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SDB-09BMMA-SL7001
ActiveAmphenol LTW
CONN D-SUB PLUG 9POS SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SDB-09BMMA-SL7001 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Acrylonitrile Butadiene Styrene (ABS) |
| Features | Grounding Indents, Shielded |
| Flange Feature | Housing/Shell (Unthreaded) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 8.69 | |
| 10 | $ 7.82 | |||
| 25 | $ 7.37 | |||
| 50 | $ 7.18 | |||
| 100 | $ 6.99 | |||
| 250 | $ 6.23 | |||
| 500 | $ 5.85 | |||
| 1000 | $ 5.18 | |||
Description
General part information
SDB-09BMMA Series
9 Position D-Sub Plug, Male Pins Connector
