NR01105ANG13
ActiveNKK Switches

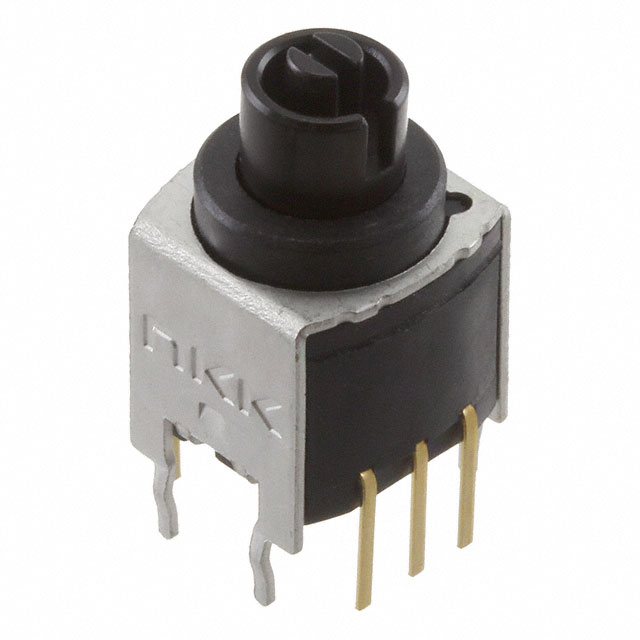

SWITCH ROTARY 5POS 0.4VA 28V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NR01105ANG13
ActiveNKK Switches
SWITCH ROTARY 5POS 0.4VA 28V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NR01105ANG13 |
|---|---|
| Actuator Type | Knob |
| Angle of Throw | 45 ° |
| Circuit per Deck | SP5T |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Timing | Non-Shorting |
| Current Rating (Amps) | 0.4 VA |
| Depth Behind Panel [z] | 10.5 mm |
| Index Stops | Fixed |
| Mounting Type | Through Hole |
| Number of Decks [custom] | 1 |
| Number of Poles per Deck | 1 |
| Termination Style | PC Pin |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
NR0110 Series
| Part | Actuator Length [x] | Voltage Rating - AC | Number of Positions | Current Rating (Amps) | Termination Style | Number of Decks [custom] | Index Stops | Actuator Type | Contact Timing | Contact Finish | Circuit per Deck | Mounting Type | Number of Poles per Deck | Contact Material | Depth Behind Panel [z] | Voltage Rating - DC | Angle of Throw |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | 7 mm | 28 V | 4 | 0.4 VA | PC Pin | 1 | Fixed | Knob | Non-Shorting | Gold | SP4T | Through Hole | 1 | Beryllium Copper | 10.5 mm | 28 V | 45 ° |
NKK Switches | 10.8 mm | 28 V | 0.4 VA | PC Pin | 1 | Fixed | Knob | Non-Shorting | Gold | SP5T | Through Hole | 1 | Beryllium Copper | 10.5 mm | 28 V | 45 ° | |
NKK Switches | 28 V | 4 | 0.4 VA | PC Pin | 1 | Fixed | Knob | Non-Shorting | Gold | SP4T | Through Hole | 1 | Beryllium Copper | 10.5 mm | 28 V | 45 ° | |
NKK Switches | 7 mm | 28 V | 0.4 VA | PC Pin | 1 | Fixed | Knob | Non-Shorting | Gold | SP5T | Through Hole | 1 | Beryllium Copper | 10.5 mm | 28 V | 45 ° | |
NKK Switches | 10.8 mm | 28 V | 0.4 VA | PC Pin | 1 | Fixed | Knob | Non-Shorting | Gold | SP3T | Through Hole | 1 | Beryllium Copper | 10.5 mm | 28 V | 45 ° | |
NKK Switches | 7 mm | 28 V | 4 | 0.4 VA | PC Pin | 1 | Fixed | Knob | Non-Shorting | Gold | SP4T | Through Hole | 1 | Beryllium Copper | 10.5 mm | 28 V | 45 ° |
NKK Switches | 7 mm | 28 V | 0.4 VA | PC Pin | 1 | Fixed | Knob | Non-Shorting | Gold | SP5T | Through Hole | 1 | Beryllium Copper | 10.5 mm | 28 V | 45 ° | |
NKK Switches | 7 mm | 28 V | 4 | 0.4 VA | PC Pin | 1 | Fixed | Knob | Non-Shorting | Gold | SP4T | Through Hole | 1 | Beryllium Copper | 10.5 mm | 28 V | 45 ° |
NKK Switches | 28 V | 0.4 VA | PC Pin | 1 | Fixed | Knob | Non-Shorting | Gold | SP5T | Through Hole | 1 | Beryllium Copper | 10.5 mm | 28 V | 45 ° | ||
NKK Switches | 7 mm | 28 V | 0.4 VA | PC Pin | 1 | Fixed | Knob | Non-Shorting | Gold | SP5T | Through Hole | 1 | Beryllium Copper | 10.5 mm | 28 V | 45 ° |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.72 | |
| 5 | $ 10.92 | |||
| 10 | $ 10.22 | |||
| 25 | $ 9.37 | |||
| 50 | $ 8.76 | |||
| 100 | $ 8.24 | |||
| 250 | $ 7.55 | |||
| 500 | $ 7.08 | |||
| 1000 | $ 6.70 | |||
Description
General part information
NR0110 Series
Rotary Switch 5 Position SP5T 0.4VA (AC/DC) 28 VAC Through Hole
Documents
Technical documentation and resources
