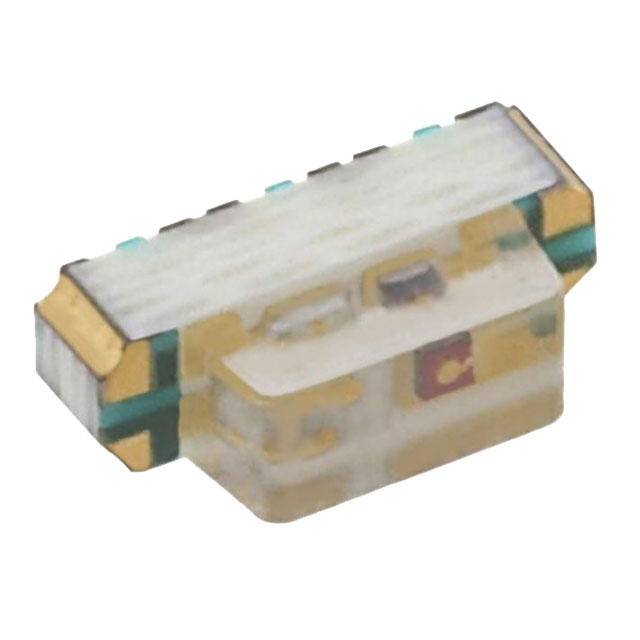

EASV2010RWA0
ActiveEverlight Electronics Co Ltd
LED RED/WHITE DIFFUSED 4SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
EASV2010RWA0
ActiveEverlight Electronics Co Ltd
LED RED/WHITE DIFFUSED 4SMD R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EASV2010RWA0 |
|---|---|
| Color | Red, White |
| Configuration | Independent |
| Current - Test [custom] | 5 mA |
| Current - Test [custom] | 5 mA |
| Height (Max) [Max] [z] | 0.7 mm |
| Lens Color | Yellow |
| Lens Size [x] | 1.4 mm |
| Lens Size [y] | 0.6 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [y] | 1.05 mm |
| Supplier Device Package | 4-SMD |
| Viewing Angle | 140 ° |
| Voltage - Forward (Vf) (Typ) | 1.85 V, 2.8 V |
| Wavelength - Peak | 632 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.38 | |
| 10 | $ 0.30 | |||
| 100 | $ 0.13 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.10 | |||
| Digi-Reel® | 1 | $ 0.38 | ||
| 10 | $ 0.30 | |||
| 100 | $ 0.13 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.10 | |||
| Tape & Reel (TR) | 3000 | $ 0.09 | ||
| 6000 | $ 0.08 | |||
| 15000 | $ 0.07 | |||
| 30000 | $ 0.06 | |||
| 75000 | $ 0.06 | |||
| 150000 | $ 0.06 | |||
Description
General part information
EASV2010 Series
Red, White LED Indication - Discrete 1.85V Red, 2.8V White 4-SMD, No Lead
Documents
Technical documentation and resources
No documents available
