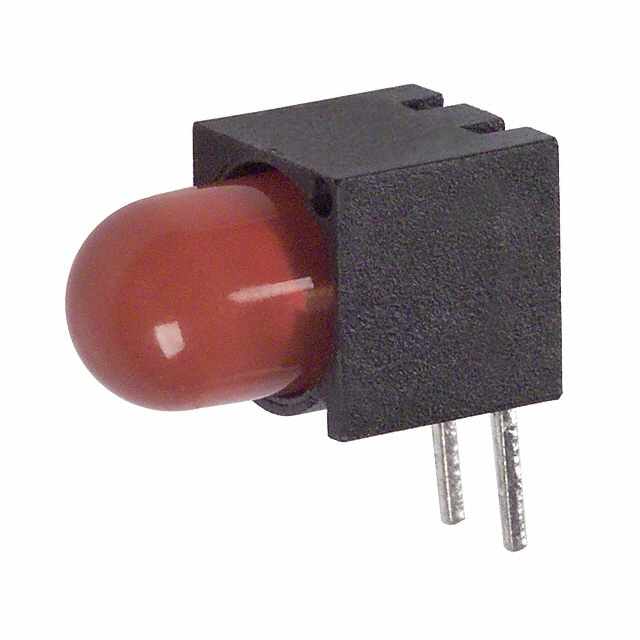

5502505F
ActiveDIALIGHT
LED CBI 5MM ORNG RA PC MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsCBI Through Hole Selector Guide
5502505F
ActiveDIALIGHT
LED CBI 5MM ORNG RA PC MNT
Deep-Dive with AI
DocumentsCBI Through Hole Selector Guide
Technical Specifications
Parameters and characteristics for this part
| Specification | 5502505F |
|---|---|
| Configuration | Single |
| Current | 10 mA |
| Lens Size | T-1 3/4 |
| Lens Size | 5 mm |
| Lens Style | Round with Domed Top |
| Lens Type | Diffused |
| Millicandela Rating | 7 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 60 ° |
| Voltage Rating | 1.9 V |
| Wavelength - Peak | 600 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.31 | |
| 10 | $ 0.92 | |||
| 100 | $ 0.69 | |||
| 500 | $ 0.59 | |||
| 1000 | $ 0.55 | |||
| 2000 | $ 0.52 | |||
| 5000 | $ 0.49 | |||
| 10000 | $ 0.47 | |||
Description
General part information
5502505 Series
LED Circuit Board Indicator LED Circuit Board Indicator Single Orange Diffused 1.9V 10mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
