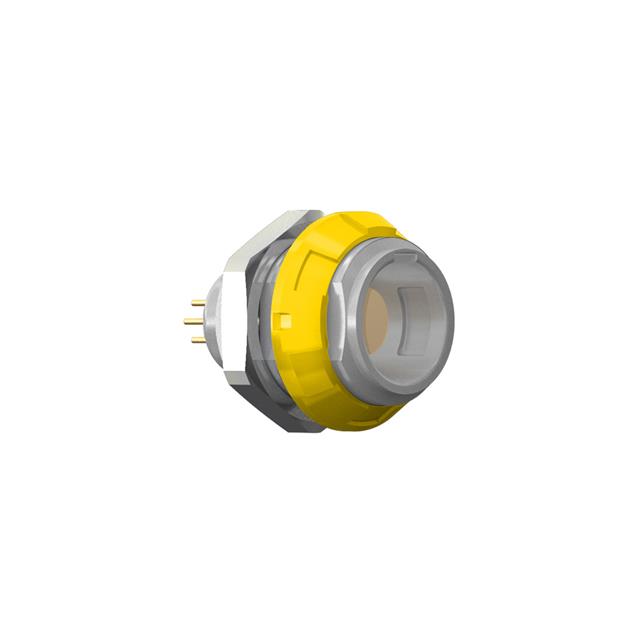

G51MA7-P05LJG0-0040

Active

ODU

CONN RCPT FMALE 5P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

G51MA7-P05LJG0-0040

Active

ODU

CONN RCPT FMALE 5P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G51MA7-P05LJG0-0040

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Color	Gray, Yellow
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	7.5 A
Fastening Type	Detent Lock, Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Front or Rear Side Nut
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-50 °C
Orientation	A
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	1
Shielding	Unshielded

G51MA7-P Series

...

Part	Primary Material	Applications	Contact Finish - Mating	Current Rating (Amps)	Shielding	Fastening Type	Contact Material	Termination	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Shell Material	Orientation	Voltage Rating	Insert Material	Connector Type	Mounting Feature	Mounting Type	Ingress Protection	Color	Number of Positions
ODU G51MA7-P05QJ00-A060	Plastic	Industrial Measurement Medical Testing Equipment	Gold	7.5 A	Unshielded	Detent Lock Push-Pull	Brass	Solder	1	-50 °C	120 °C	UL94 V-0	Polysulfone (PSU)	A	35 V	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Bulkhead - Front or Rear Side Nut	Panel Mount Through Hole	IP50	Blue Gray
ODU G51MA7-P06LFD0-0080	Plastic	Industrial Medical Military Testing Equipment & Measurement	Gold	4.55 A	Unshielded	Detent Lock Push-Pull	Brass		1	-50 °C	120 °C		Polysulfone (PSU)	A		Polyetheretherketone (PEEK)	Receptacle Female Sockets	Bulkhead - Front or Rear Side Nut		IP50		6
ODU G51MA7-P05LJG0-0040	Plastic	Industrial Medical Military Testing Equipment & Measurement	Gold	7.5 A	Unshielded	Detent Lock Push-Pull	Brass		1	-50 °C	120 °C		Polysulfone (PSU)	A		Polyetheretherketone (PEEK)	Receptacle Female Sockets	Bulkhead - Front or Rear Side Nut		IP50	Gray Yellow
ODU G51MA7-P04QJ00-0020	Plastic	Industrial Measurement Medical Testing Equipment	Gold	7.5 A	Unshielded	Detent Lock Push-Pull	Brass	Solder	1	-50 °C	120 °C	UL94 V-0	Polysulfone (PSU)	A	48 VDC	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Bulkhead - Front or Rear Side Nut	Panel Mount Through Hole	IP50	Gray Red	4
ODU G51MA7-P02LPH0-0070	Plastic	Industrial Medical Military Testing Equipment & Measurement	Gold	14 A	Unshielded	Detent Lock Push-Pull	Brass		1	-50 °C	120 °C		Polysulfone (PSU)	A		Polyetheretherketone (PEEK)	Receptacle Female Sockets	Bulkhead - Front or Rear Side Nut		IP50	Gray	2
ODU G51MA7-P14LCC0-0030	Plastic	Industrial Medical Military Testing Equipment & Measurement	Gold	2.5 A	Unshielded	Detent Lock Push-Pull	Brass		1	-50 °C	120 °C		Polysulfone (PSU)	A		Polyetheretherketone (PEEK)	Receptacle Female Sockets	Bulkhead - Front or Rear Side Nut		IP50	Gray White	14
ODU G51MA7-P05LJG0-0020	Plastic	Industrial Medical Military Testing Equipment & Measurement	Gold	7.5 A	Unshielded	Detent Lock Push-Pull	Brass		1	-50 °C	120 °C		Polysulfone (PSU)	A		Polyetheretherketone (PEEK)	Receptacle Female Sockets	Bulkhead - Front or Rear Side Nut		IP50	Gray Red
ODU G51MA7-P14LCC0-0060	Plastic	Industrial Medical Military Testing Equipment & Measurement	Gold	2.5 A	Unshielded	Detent Lock Push-Pull	Brass		1	-50 °C	120 °C		Polysulfone (PSU)	A		Polyetheretherketone (PEEK)	Receptacle Female Sockets	Bulkhead - Front or Rear Side Nut		IP50	Blue Gray	14
ODU G51MA7-P06QF00-A020	Plastic	Industrial Measurement Medical Testing Equipment	Gold	6 A	Unshielded	Detent Lock Push-Pull	Brass	Solder	1	-50 °C	120 °C	UL94 V-0	Polysulfone (PSU)	A	36 VDC	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Bulkhead - Front or Rear Side Nut	Panel Mount Through Hole	IP50	Gray Red	6
ODU G51MA7-P08QF00-0050	Plastic	Industrial Measurement Medical Testing Equipment	Gold	6 A	Unshielded	Detent Lock Push-Pull	Brass	Solder	1	-50 °C	120 °C	UL94 V-0	Polysulfone (PSU)	A	32 V	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Bulkhead - Front or Rear Side Nut	Panel Mount Through Hole	IP50	Gray Green	8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.31
		10	$ 17.79
		25	$ 17.02
		50	$ 16.47
		100	$ 15.92
		250	$ 15.04
		500	$ 14.60

Description

General part information

G51MA7-P Series

5 Position Circular Connector Receptacle, Female Sockets Solder Cup
