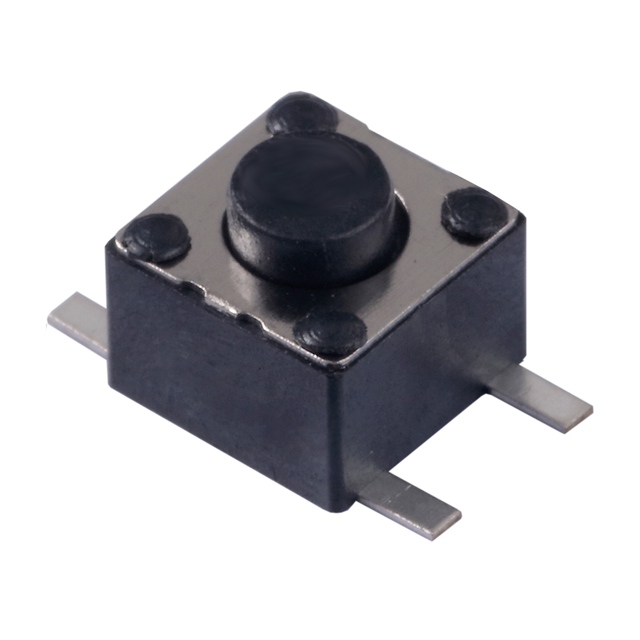

223CMVAAR

Active

Tusonix a Subsidiary of CTS Electronic Components

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

Tusonix a Subsidiary of CTS Electronic Components

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	223CMVAAR

Actuator Height off PCB, Vertical	3.8 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Tactile Feedback
Illumination	Non-Illuminated
Mechanical Life	1000000 Cycles
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	4.5 mm
Outline [y]	4.5 mm
Switch Function	Off-Mom
Switch Travel	0.2 mm
Termination Style	Gull Wing

Part	Features	Termination Style	Outline [x]	Outline [y]	Switch Function	Actuator Height off PCB, Vertical [z]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Orientation	Mounting Type	Mechanical Life	Switch Travel	Circuit	Actuator Type	Contact Rating @ Voltage	Illumination	Actuator Height off PCB, Vertical
Tusonix a Subsidiary of CTS Electronic Components 223CMVBAR	Tactile Feedback	Gull Wing	4.5 mm	4.5 mm	Off-Mom	7 mm	85 °C	-40 °C	Top Actuated	Surface Mount	1000000 Cycles	0.2 mm	SPST-NO	Standard	0.05 A 12 VDC	Non-Illuminated
Tusonix a Subsidiary of CTS Electronic Components 223CMVAAR	Tactile Feedback	Gull Wing	4.5 mm	4.5 mm	Off-Mom		85 °C	-40 °C	Top Actuated	Surface Mount	1000000 Cycles	0.2 mm	SPST-NO	Standard	0.05 A 12 VDC	Non-Illuminated	3.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10800	$ 0.13

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
