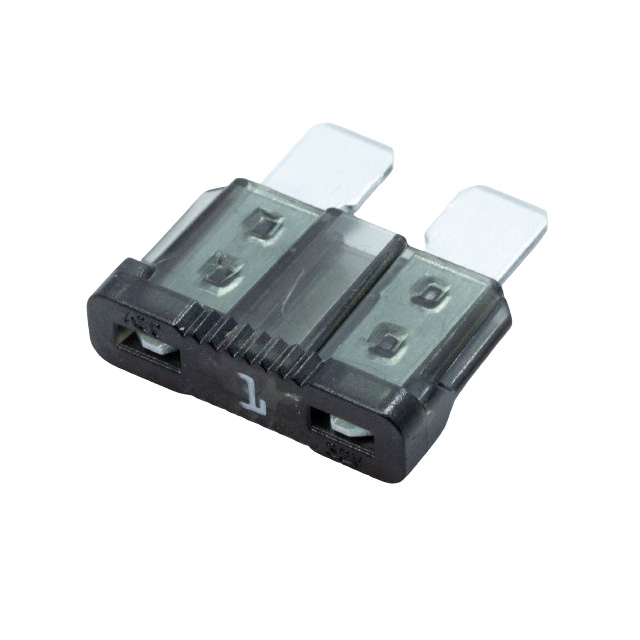

APR-1A

Active

OptiFuse

FUSE AUTO 1A 32VDC BLADE ATO/ATC

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 1A 32VDC BLADE ATO/ATC

Technical Specifications

Parameters and characteristics for this part

Specification	APR-1A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Black
Current Rating (Amps)	1 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	ATO, Blade, ATC
Response Time	Fast Blow
Size / Dimension [x]	0.752 in
Size / Dimension [x]	19.1 mm
Size / Dimension [y]	0.201 "
Size / Dimension [y]	5.1 mm
Size / Dimension [z]	12.3 mm
Size / Dimension [z]	0.484 in
Voltage Rating - DC	32 V

Part	Response Time	Color	Current Rating (Amps)	Breaking Capacity @ Rated Voltage	Package / Case	Approval Agency	Voltage Rating - DC	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Fuse Type	Mounting Type
OptiFuse APR-1A	Fast Blow	Black	1 A	1 kA	ATC ATO Blade	ISO SAE	32 V	0.201 "	5.1 mm	12.3 mm	0.752 in	19.1 mm	0.484 in	Automotive	Requires Holder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1 A AC 32 V DC Fuse Automotive Requires Holder Blade, ATO/ATC
