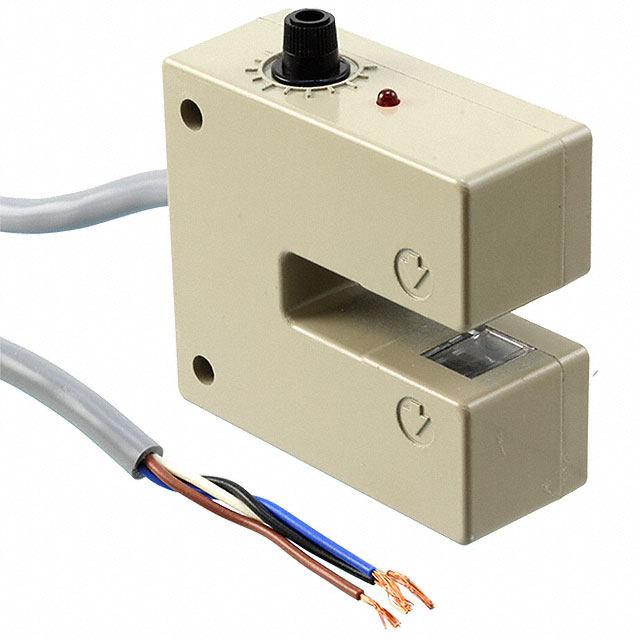

RT-610-10
ObsoletePanasonic Industrial Automation Sales
SENSOR THROUGH-BEAM 10MM LO/DO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT-610-10
ObsoletePanasonic Industrial Automation Sales
SENSOR THROUGH-BEAM 10MM LO/DO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT-610-10 |
|---|---|
| Adjustment Type | Adjustable |
| Cable Length | 100 cm |
| Cable Length | 39.37 in |
| Connection Method | Cable |
| Ingress Protection | IP62 |
| Light Source | Infrared |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Output Configuration | Light-On/Dark-On |
| Response Time | 100 µs |
| Sensing Distance | 0.394 in |
| Sensing Distance | 10 mm |
| Sensing Method | Through-Beam |
| Voltage - Supply [Max] | 24 V |
| Voltage - Supply [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
RT-610 Series
Through-Beam Optical Sensor 0.394" (10mm) Light-On/Dark-On
