0027624052

Active

Molex

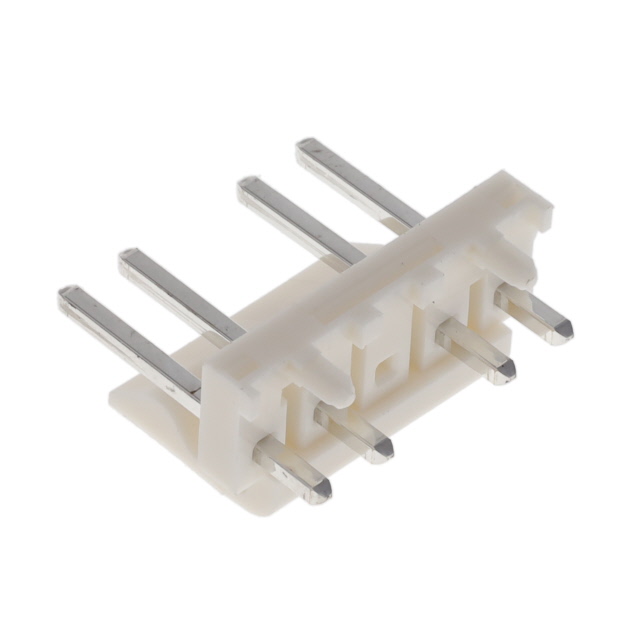

CONN HEADER VERT 5POS 3.96MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0027624052

Active

Molex

CONN HEADER VERT 5POS 3.96MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0027624052

Applications	Industrial, Automotive, Medical, General Purpose, Telecommunications
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	60 Áin
Contact Finish Thickness - Mating	1.52 Ám
Contact Finish Thickness - Post	60 µin
Contact Finish Thickness - Post	1.52 µm
Contact Length - Mating	11.43 mm
Contact Length - Mating	0.45 in
Contact Length - Post [x]	3.56 mm
Contact Length - Post [x]	0.14 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Features	Board Guide
Insulation Color	Natural
Insulation Height	0.446 in
Insulation Height	11.33 mm
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	4
Number of Rows	1
Overall Contact Length	0.72 "
Overall Contact Length	18.29 mm
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Board, Cable
Termination	Solder

002762 Series

Part	Insulation Color	Applications	Contact Shape	Contact Finish - Post	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Termination	Contact Type	Features	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Shrouding	Insulation Material	Contact Material	Connector Type	Insulation Height	Insulation Height	Number of Positions	Number of Positions Loaded [custom]
Molex 0027624032	Natural	Automotive General Purpose Industrial Medical Telecommunications	Square	Tin	1	3.56 mm	0.14 in	11.43 mm	0.45 in	0.156 in	3.96 mm	0.72 "	18.29 mm	2	Solder	Male Pin	Board Guide	UL94 V-0	60 µin	1.52 µm	Friction Lock	Through Hole	60 Áin	1.52 Ám	Board to Board Cable	Shrouded - 1 Wall	Polyester	Brass	Header	0.446 in	11.33 mm
Molex 0027624087	Natural	Automotive General Purpose Industrial Medical Telecommunications	Square	Tin	1	3.56 mm	0.14 in	11.43 mm	0.45 in	0.156 in	3.96 mm	0.72 "	18.29 mm	7	Solder	Male Pin	Board Guide	UL94 V-0	60 µin	1.52 µm	Friction Lock	Through Hole	60 Áin	1.52 Ám	Board to Board Cable	Shrouded - 1 Wall	Polyester	Brass	Header	0.446 in	11.33 mm	8
Molex 0027624068	Natural	Automotive General Purpose Industrial Medical Telecommunications	Square	Tin	1	3.56 mm	0.14 in	11.43 mm	0.45 in	0.156 in	3.96 mm	0.72 "	18.29 mm		Solder	Male Pin	Board Guide	UL94 V-0	60 µin	1.52 µm	Friction Lock	Through Hole	60 Áin	1.52 Ám	Board to Board Cable	Shrouded - 1 Wall	Polyester	Brass	Header	0.446 in	11.33 mm	6	5
Molex 0027624059	Natural	Automotive General Purpose Industrial Medical Telecommunications	Square	Tin	1	3.56 mm	0.14 in	11.43 mm	0.45 in	0.156 in	3.96 mm	0.72 "	18.29 mm	4	Solder	Male Pin		UL94 V-0	60 µin	1.52 µm	Friction Lock	Through Hole	60 Áin	1.52 Ám	Board to Board Cable	Shrouded - 1 Wall	Polyester Glass Filled		Header	0.446 in	11.33 mm
Molex 0027624139	Natural	Automotive General Purpose Industrial Medical Telecommunications	Square	Tin	1	3.56 mm	0.14 in	11.43 mm	0.45 in	0.156 in	3.96 mm	0.72 "	18.29 mm	12	Solder	Male Pin		UL94 V-0	60 µin	1.52 µm	Friction Lock	Through Hole	60 Áin	1.52 Ám	Board to Board Cable	Shrouded - 1 Wall	Polyester Glass Filled		Header	0.446 in	11.33 mm	13
Molex 0027624049	Natural	Automotive General Purpose Industrial Medical Telecommunications	Square	Tin	1	3.56 mm	0.14 in	11.43 mm	0.45 in	0.156 in	3.96 mm	0.72 "	18.29 mm	3	Solder	Male Pin		UL94 V-0	60 µin	1.52 µm	Friction Lock	Through Hole	60 Áin	1.52 Ám	Board to Board Cable	Shrouded - 1 Wall	Polyester Glass Filled		Header	0.446 in	11.33 mm	4
Molex 0027624052	Natural	Automotive General Purpose Industrial Medical Telecommunications	Square	Tin	1	3.56 mm	0.14 in	11.43 mm	0.45 in	0.156 in	3.96 mm	0.72 "	18.29 mm	4	Solder	Male Pin	Board Guide	UL94 V-0	60 µin	1.52 µm	Friction Lock	Through Hole	60 Áin	1.52 Ám	Board to Board Cable	Shrouded - 1 Wall	Polyester	Brass	Header	0.446 in	11.33 mm
Molex 0027624079	Natural	Automotive General Purpose Industrial Medical Telecommunications	Square	Tin	1	3.56 mm	0.14 in	11.43 mm	0.45 in	0.156 in	3.96 mm	0.72 "	18.29 mm		Solder	Male Pin		UL94 V-0	60 µin	1.52 µm	Friction Lock	Through Hole	60 Áin	1.52 Ám	Board to Board Cable	Shrouded - 1 Wall	Polyester Glass Filled		Header	0.446 in	11.33 mm	7

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3600	$ 0.24
		7200	$ 0.23
		10800	$ 0.21
		18000	$ 0.21
		25200	$ 0.20

Description

General part information

002762 Series

Connector Header Through Hole 5 position 0.156" (3.96mm)
