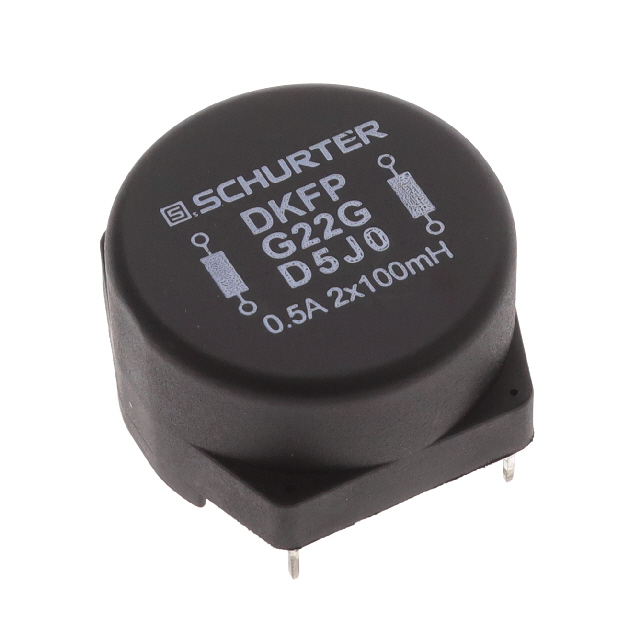

DKFP-G22G-D5J0
ActiveSCHURTER Inc.
CMC 500MA 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DKFP-G22G-D5J0
ActiveSCHURTER Inc.
CMC 500MA 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DKFP-G22G-D5J0 |
|---|---|
| Current Rating (Max) [Max] | 500 mA |
| DC Resistance (DCR) (Max) [Max] | 3.1 Ohm |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Size / Dimension [x] | 1.339 " |
| Size / Dimension [x] | 34 mm |
| Size / Dimension [y] | 33 mm |
| Size / Dimension [y] | 1.299 in |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.58 | |
| 50 | $ 2.18 | |||
| 100 | $ 1.94 | |||
Description
General part information
DKFP Series
2 Line Common Mode Choke Through Hole 500mA DCR 3.1Ohm
