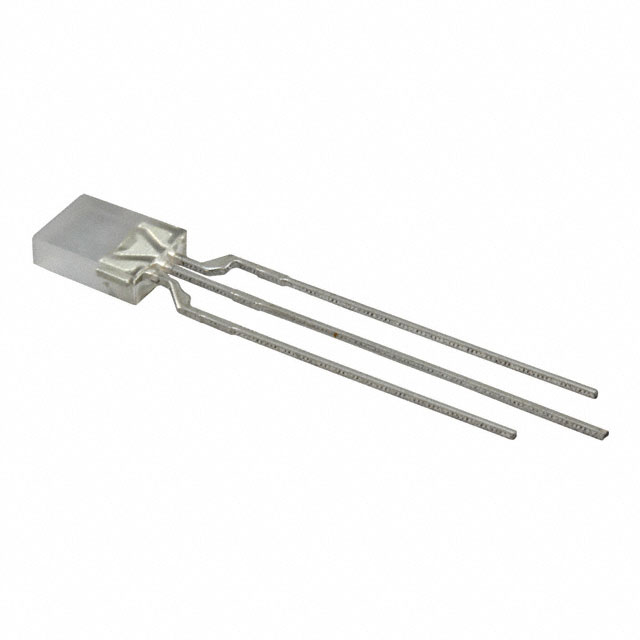

WP119EGWT
ActiveKingbright
DUAL COLOR LED, HIGH EFFICIENCY RED/GREEN, DIFFUSED WHITE, 5MM, 2 X 5 MM, ROHS COMPLIANT PACKAGE-3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WP119EGWT
ActiveKingbright
DUAL COLOR LED, HIGH EFFICIENCY RED/GREEN, DIFFUSED WHITE, 5MM, 2 X 5 MM, ROHS COMPLIANT PACKAGE-3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WP119EGWT |
|---|---|
| Color | Red, Green |
| Configuration | Common Cathode |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] [z] | 10.5 mm |
| Lens Color | White |
| Lens Size [x] | 5 mm |
| Lens Size [y] | 2 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 10 mcd, 9 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial - 3 Leads |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 2 mm |
| Supplier Device Package | Rectangular 2mmx5mm |
| Viewing Angle | 110 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V, 2 V |
| Wavelength - Dominant | 568 nm, 617 nm |
| Wavelength - Peak | 565 nm, 627 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.60 | |
| 10 | $ 0.36 | |||
| 100 | $ 0.23 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.17 | |||
| 2000 | $ 0.15 | |||
| 5000 | $ 0.14 | |||
| 10000 | $ 0.13 | |||
| 25000 | $ 0.12 | |||
Description
General part information
WP119 Series
Green, Red 568nm Green, 617nm Red LED Indication - Discrete 2.2V Green, 2V Red Radial - 3 Leads
