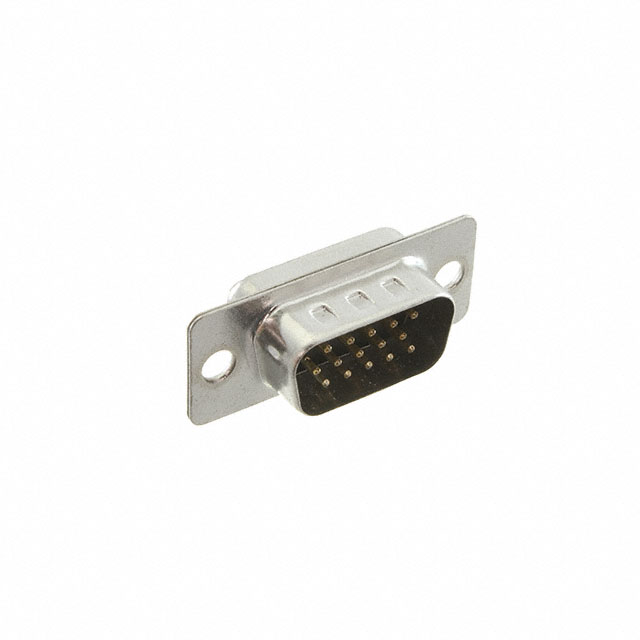

HDT15-PD

Active

Adam Tech

CONN D-SUB HD PLUG 15P SLDR CUP

Search across all available documentation for this part.

Active

Adam Tech

CONN D-SUB HD PLUG 15P SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	HDT15-PD

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	3
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Voltage Rating	250 VAC

Part	Connector Type	Features	Mounting Type	Number of Positions	Flange Feature	Operating Temperature [Max]	Operating Temperature [Min]	Color	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Connector Style	Contact Finish	Number of Rows	Contact Type	Material Flammability Rating	Voltage Rating	Current Rating (Amps)	Contact Material	Termination	Contact Finish Thickness
Adam Tech HDT15-PR	Plug for Male Contacts	Grounding Indents	Free Hanging (In-Line)	15	Housing/Shell (Unthreaded)	125 °C	-65 ░C	Black	DE E	1	High Density	Polybutylene Terephthalate (PBT) Glass Filled	D-Sub High Density
Adam Tech HDT15-SD	Receptacle Female Sockets		Free Hanging (In-Line)	15	Housing/Shell (Unthreaded)			Black	DE E	1	High Density	Polybutylene Terephthalate (PBT) Glass Filled	D-Sub High Density	Gold	3	Signal	UL94 V-0	250 VAC	3 A	Copper Alloy
Adam Tech HDT15-PD	Male Pins Plug	Grounding Indents	Free Hanging (In-Line)	15	Housing/Shell (Unthreaded)			Black	DE E	1	High Density	Polybutylene Terephthalate (PBT) Glass Filled	D-Sub High Density	Gold	3		UL94 V-0	250 VAC	3 A	Copper Alloy
Adam Tech HDT15-ST	Receptacle Female Sockets		Through Hole	15	Housing/Shell (Unthreaded)			Black	DE E	1	High Density	Polybutylene Terephthalate (PBT) Glass Filled	D-Sub High Density	Gold	3		UL94 V-0	250 VAC	3 A	Copper Alloy	Solder	Flash
