6GK57938DP000AA0

Active

Siemens

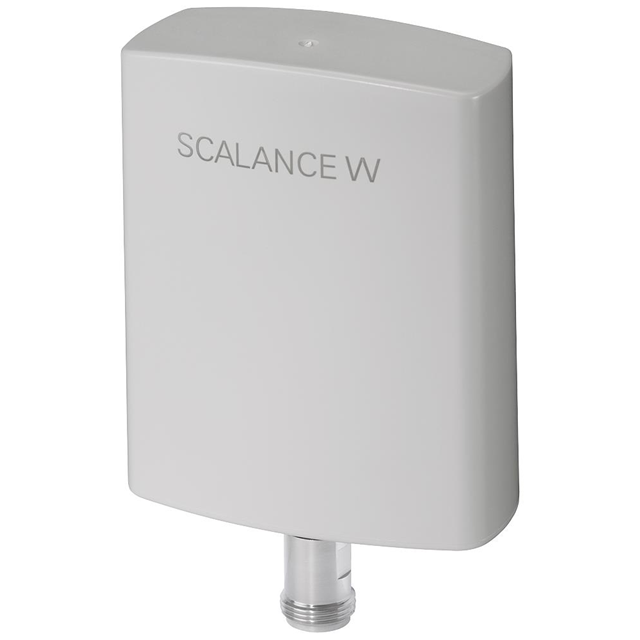

IWLAN ANTENNA ANT793-8DP

Search across all available documentation for this part.

Active

Siemens

IWLAN ANTENNA ANT793-8DP

Technical Specifications

Parameters and characteristics for this part

Part	Frequency (Center/Band)	Number of Bands	Frequency Range [Max]	Frequency Range [Min]	Antenna Type	Termination	RF Family/Standard	Gain	VSWR	Mounting Type	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Applications	Frequency Group	Height (Max) [Max]	Height (Max) [Max]	Ingress Protection
Siemens 6GK57938DL000AA0	5.4 GHz	1	5.9 GHz	4.9 GHz	Whip Straight	N Type Female	WiFi	14 dBi	2.5	Bracket Mount	283 mm	11.142 in	Wi-Fi WLAN	SHF
Siemens 6GK57938DP000AA0	5.125 GHz	1	5.35 GHz	4.9 GHz	Module	N Type Female	WiFi	13.5 dB	1.5	Wall Mount			WLAN	SHF	3.976 in	101 mm	IP66 IP67

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 472.68

General part information

RF ANTENNA WLAN Module N Type Female Wall Mount
