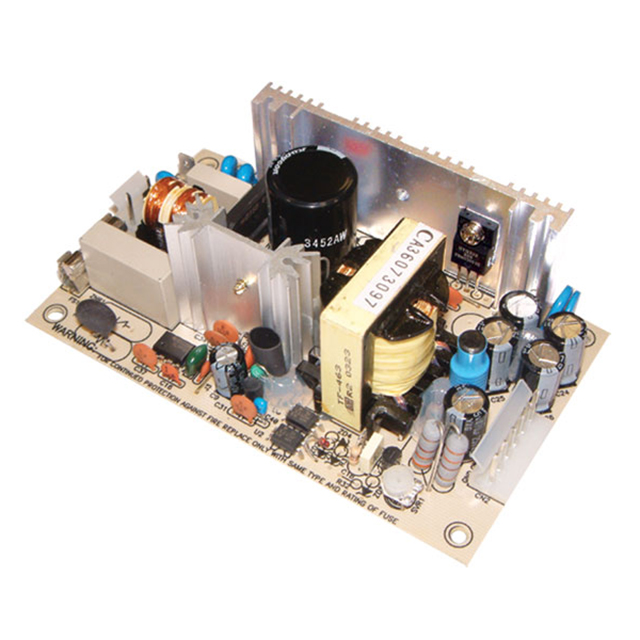

PD-65A
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 5V 12V 61W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PD-65A |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE, cURus, TUV |
| Current - Output 1 | 5.5 A |
| Current - Output 2 | 2.8 A |
| Efficiency | 78 % |
| Features | Adjustable Output, Universal Input |
| Minimum Load Required | True |
| Mounting Type | Chassis Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 61 W |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [x] | 5 in |
| Size / Dimension [y] | 76 mm |
| Size / Dimension [y] | 2.99 in |
| Size / Dimension [z] | 1.65 " |
| Size / Dimension [z] | 42 mm |
| Type | Open Frame |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 127 VDC, 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 19.20 | |
| 5 | $ 18.09 | |||
| 10 | $ 17.63 | |||
| 25 | $ 17.04 | |||
Description
General part information
PD-65 Series
Open Frame AC DC Converters 2 Output 5V 12V 90 ~ 264 VAC, 127 ~ 370 VDC Input
