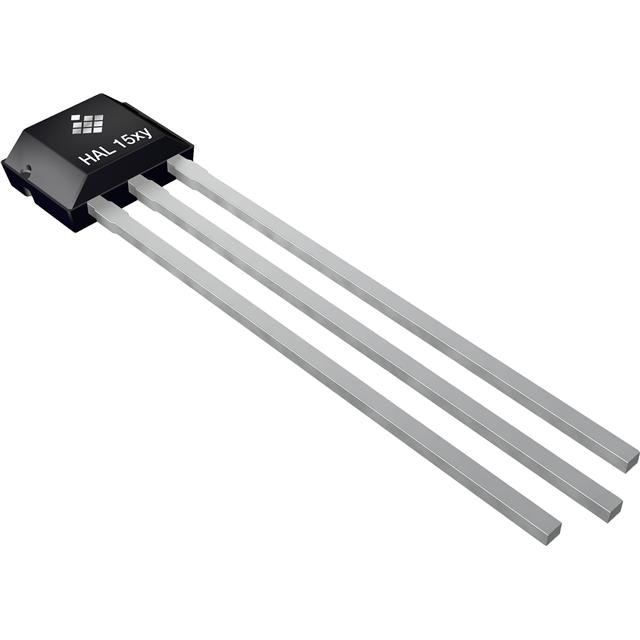

HAL1561 UA
ActiveEPCOS - TDK Electronics
MAGNETIC SWITCH LATCH TO92UA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HAL1561 UA
ActiveEPCOS - TDK Electronics
MAGNETIC SWITCH LATCH TO92UA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HAL1561 UA |
|---|---|
| Current - Supply (Max) [Max] | 1.6 mA |
| Function | Latch |
| Grade | Automotive |
| Mounting Type | Through Hole |
| Output Type | Current Source |
| Package / Case | TO-226-3, TO-92-3 |
| Qualification | AEC-Q100 |
| Sensing Range | 4 mT, -4 mT |
| Technology | Hall Effect |
| Voltage - Supply [Max] | 24 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2000 | $ 0.34 | |
| Cut Tape (CT) | 1 | $ 1.09 | ||
| 10 | $ 0.82 | |||
| 25 | $ 0.66 | |||
| 100 | $ 0.60 | |||
| 500 | $ 0.51 | |||
| 1000 | $ 0.45 | |||
Description
General part information
HAL1561 Series
Digital Switch Latch Current Source Hall Effect TO-92UA
