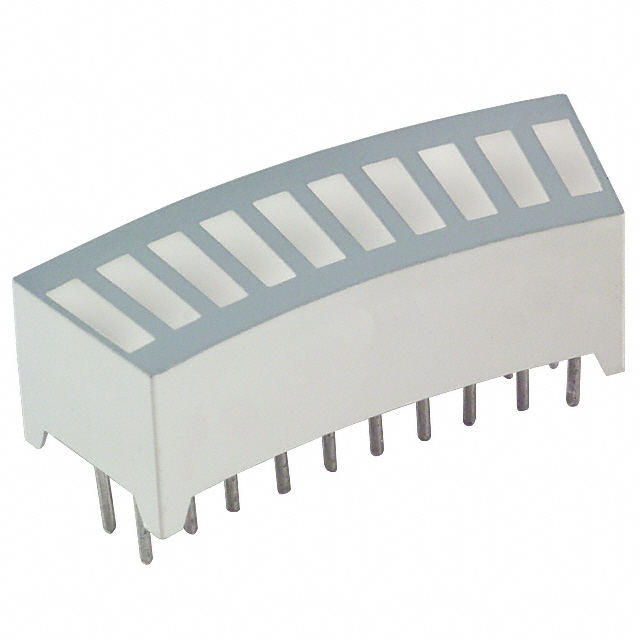

SSA-LXB10SRW-10652

Active

Lumex Opto/Components Inc.

LED CBI 10-SEG RED THROUGH HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SSA-LXB10SRW-10652 p.2

SSA-LXB10SRW-10652

Active

Lumex Opto/Components Inc.

LED CBI 10-SEG RED THROUGH HOLE

Deep-Dive with AI

DocumentsDatasheet SSA-LXB10SRW-10652 p.2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSA-LXB10SRW-10652

Color	Red (x 10)
Configuration	Bar - 10 Curved, DIP
Current	30 mA
Lens Style	Rectangle with Flat Top
Lens Type	Diffused, White
Millicandela Rating	20 mcd
Mounting Type	Through Hole
Viewing Angle	160 °
Voltage Rating	1.7 V
Wavelength - Peak	660 nm

SSA-LXB10 Series

Part	Configuration	Configuration	Lens Size [x]	Lens Size [y]	Voltage Rating	Millicandela Rating	Wavelength - Peak	Mounting Type	Color	Lens Style	Viewing Angle	Current	Lens Type	Current
Lumex Opto/Components Inc. SSA-LXB10IW-GF	10 Wide	Bar DIP	5 mm	1.74 mm	2 V	8 mcd	635 nm	Through Hole	Red (x 10)	Rectangle with Flat Top	160 °	30 mA	Diffused White
Lumex Opto/Components Inc. SSA-LXB10YW	10 Wide	Bar DIP	5 mm	1.74 mm	2.1 V	12 mcd	585 nm	Through Hole	Yellow	Rectangle with Flat Top	160 °	30 mA	Diffused White
Lumex Opto/Components Inc. SSA-LXB10GW-GF/LP	10 Wide	Bar DIP	5.08 mm	1.74 mm		8 mcd	565 nm	Through Hole	Green (x 10)	Rectangle with Flat Top	160 °	25 mA	Diffused White
Lumex Opto/Components Inc. SSA-LXB10GW-GF	10 Wide	Bar DIP	5 mm	1.74 mm		8 mcd	565 nm	Through Hole	Green (x 10)	Rectangle with Flat Top	160 °	25 mA	Diffused White
Lumex Opto/Components Inc. SSA-LXB10HW-GF	10 Wide	Bar DIP	5 mm	1.74 mm	2.1 V	4 mcd	700 nm	Through Hole	Red (x 10)	Rectangle with Flat Top	160 °	30 mA	Diffused White
Lumex Opto/Components Inc. SSA-LXB10IW	10 Wide	Bar DIP			2 V	12 mcd	635 nm	Through Hole	Red (x 10)		160 °	30 mA	Diffused White
Lumex Opto/Components Inc. SSA-LXB10HW-GF/LP	10 Wide	Bar DIP	5 mm	1.74 mm	2.35 V	0.75 mcd	700 nm	Through Hole	Red (x 10)	Rectangle with Flat Top	160 °	10 mA	Diffused White
Lumex Opto/Components Inc. SSA-LXB10IW-GF/LP	10 Wide	Bar DIP	5.08 mm	1.74 mm	2 V	8 mcd	635 nm	Through Hole	Red (x 10)	Rectangle with Flat Top	160 °	30 mA	Diffused Tinted
Lumex Opto/Components Inc. SSA-LXB10G5Y4I1WLP	10 Wide	Bar DIP	5.3 mm	1.8 mm	2 V 2 V 2.2 V	8 mcd 8 mcd 8 mcd	565 nm 585 nm 635 nm	Through Hole	Green Red Yellow	Rectangle with Flat Top	160 °		Diffused	20mA Green 20mA Red 20mA Yellow
Lumex Opto/Components Inc. SSA-LXB10SRW-10652		Bar - 10 Curved DIP			1.7 V	20 mcd	660 nm	Through Hole	Red (x 10)	Rectangle with Flat Top	160 °	30 mA	Diffused White

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SSA-LXB10 Series

LED Circuit Board Indicator LED Circuit Board Indicator Bar - 10 Curved, DIP Red (x 10) Diffused, White 1.7V 30mA Rectangle with Flat Top Through Hole
