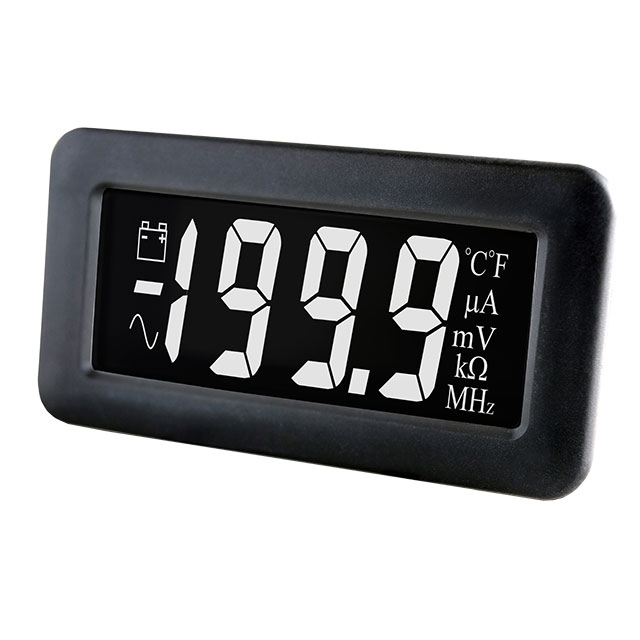

DPM 750S-EB-W

Active

Lascar Electronics

PROCESS METER LCD PNL MOUNT

Search across all available documentation for this part.

Active

Lascar Electronics

PROCESS METER LCD PNL MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	DPM 750S-EB-W

Display Characters - Height [z]	0.5 in
Display Characters - Height [z]	12.7 mm
Display Type	LCD, White Characters, Backlight
Ingress Protection	IP67 - Dust Tight, Waterproof
Measuring Range [Max]	0.2 VDC
Measuring Range [Min]	-200 mV
Measuring Type	Voltage
Number of Characters Per Row	3.5
Output Type	Reference
Panel Cutout Dimensions [x]	62 mm
Panel Cutout Dimensions [y]	32 mm
Termination Style	PC Pin
Type	Voltmeter
Voltage - Supply [Max]	7.5 V
Voltage - Supply [Min]	4.75 V

Part	Display Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Measuring Range [Min]	Measuring Range [Max]	Termination Style	Ingress Protection	Output Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Number of Characters Per Row	Display Characters - Height [z]	Display Characters - Height [z]	Measuring Type	Type
Lascar Electronics DPM 750S-EB-W	Backlight LCD White Characters	7.5 V	4.75 V	-200 mV	0.2 VDC	PC Pin	IP67 - Dust Tight Waterproof	Reference	62 mm	32 mm	3.5	0.5 in	12.7 mm	Voltage	Voltmeter
Lascar Electronics DPM 750S-BL		5.6 V	5 V	-200 mV	0.2 VDC	PC Pin		Reference	62 mm	32 mm	3.5	0.5 in	12.7 mm	Voltage	Voltmeter

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 67.99

General part information

Voltmeter LCD - White Characters, Backlight Display Panel Mount
