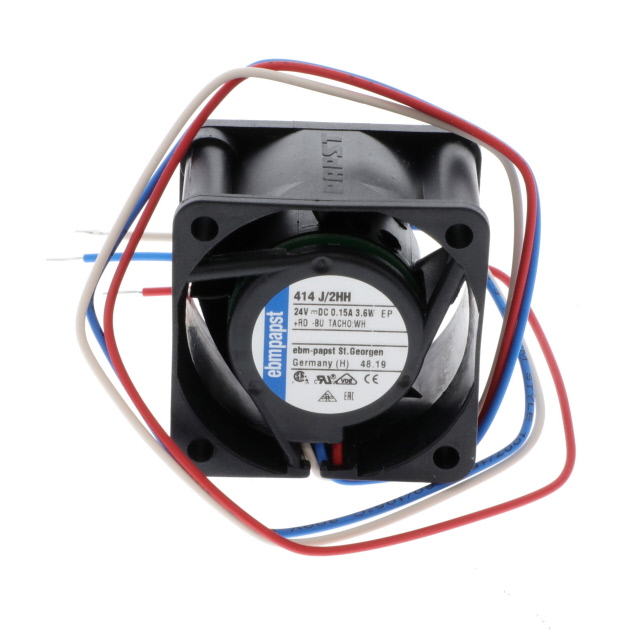

414J/2HH
Activeebm-papst Inc.
FAN AXIAL 40X25.4MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
414J/2HH
Activeebm-papst Inc.
FAN AXIAL 40X25.4MM 24VDC WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 414J/2HH |
|---|---|
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach), Locked Rotor Protection |
| Lifetime @ Temp. | 57500 Hrs |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Noise | 46 dB(A) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 3.6 W |
| RPM | 13000 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [z] | 40 mm |
| Termination | 3 Wire Leads |
| Voltage - Rated | 24 VDC |
| Weight | 0.111 lb |
| Weight | 50.35 g |
| Width [y] | 25.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 47.35 | |
| 10 | $ 43.25 | |||
| 25 | $ 41.60 | |||
| 50 | $ 38.87 | |||
| 100 | $ 35.86 | |||
| 250 | $ 35.31 | |||
Description
General part information
414J Series
Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Ball 14.1 CFM (0.395m³/min) 3 Wire Leads
