SN239M

Active

Comet America, LP

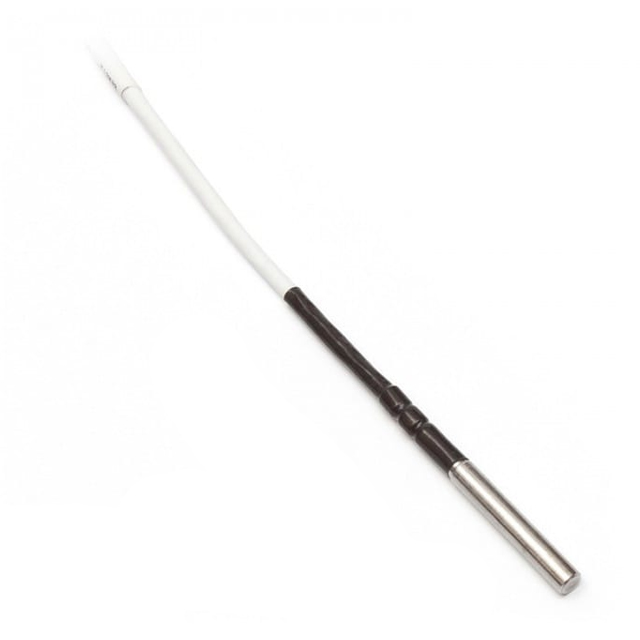

PT1000TR125/M, TEMP PROBE 1 M

Search across all available documentation for this part.

Active

Comet America, LP

PT1000TR125/M, TEMP PROBE 1 M

Technical Specifications

Parameters and characteristics for this part

Specification	SN239M

Conductor Type	Non-Grounded
Diameter - Protective Tube [diameter]	5 mm
Element Type	Pt1000
Length - Lead Wire	3.281 '
Length - Lead Wire	1 m
Length - Protective Tube	50 mm
Temperature Range [Max]	150 °C
Temperature Range [Min]	-190 °C
Terminal Type	Exposed Lead Wires

Part	Diameter - Protective Tube [diameter]	Terminal Type	Length - Protective Tube	Conductor Type	Length - Lead Wire	Length - Lead Wire	Element Type	Temperature Range [Min]	Temperature Range [Max]
Comet America, LP SN239C	5 mm	Exposed Lead Wires	50 mm	Non-Grounded	3.281 '	1 m	Pt1000	-190 °C	150 °C
Comet America, LP SN239M	5 mm	Exposed Lead Wires	50 mm	Non-Grounded	3.281 '	1 m	Pt1000	-190 °C	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pt1000 Temperature Sensor -190°C ~ 150°C Non-Grounded Exposed Lead Wires

Technical documentation and resources
