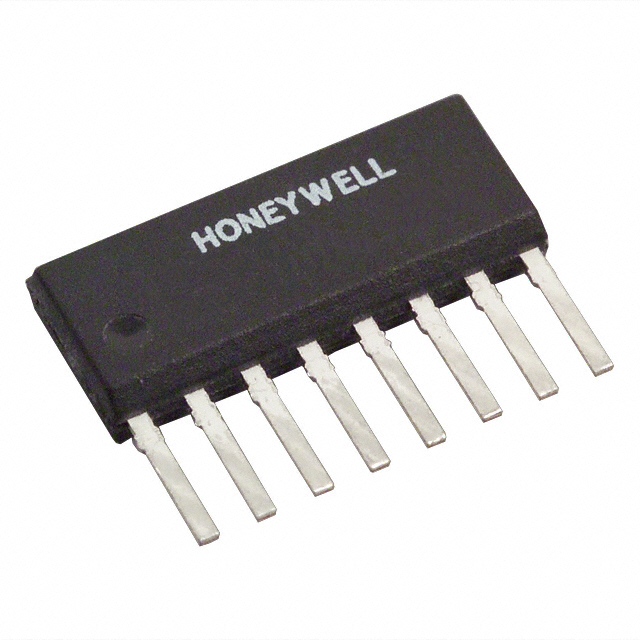

HMC1001-RC
ActiveHONEYWELL / SENSOTEC
SENSOR MR WHEAT BRIDGE 8PIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HMC1001-RC |
|---|---|
| Axis | Single |
| Bandwidth | 5 MHz |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Wheatstone Bridge |
| Package / Case | 8-SIP |
| Sensing Range [Max] | 2 mT |
| Sensing Range [Min] | -2 mT |
| Supplier Device Package | 8- Pin SIP |
| Technology | Magnetoresistive |
| Voltage - Supply [Max] | 12 V |
| Voltage - Supply [Min] | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 28.76 | |
Description
General part information
HMC1001 Series
Magnetoresistive Sensor Single Axis 8- Pin SIP
