ATP13-4P-BM02BLK

Active

Amphenol Sine Systems Corp

4 POSITION 90DEG PCB FLANGE MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet A Series Family +1

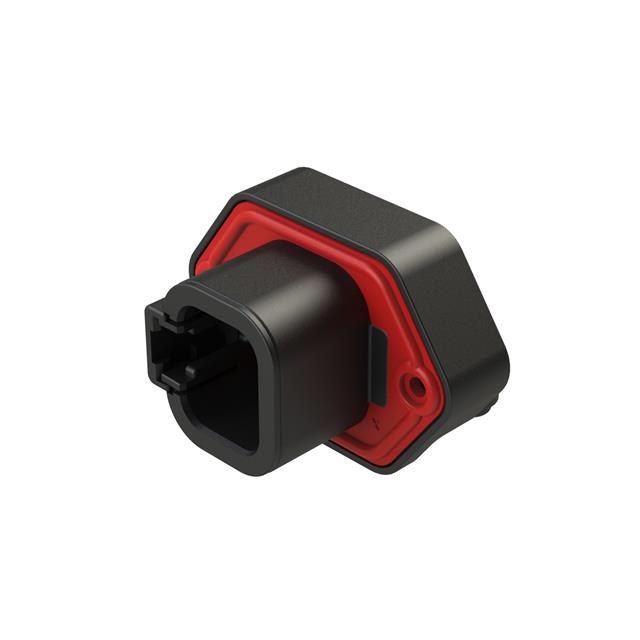

ATP13-4P-BM02BLK

Active

Amphenol Sine Systems Corp

4 POSITION 90DEG PCB FLANGE MNT

Deep-Dive with AI

DocumentsDatasheet A Series Family +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATP13-4P-BM02BLK

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Length - Post	0.146 in
Contact Length - Post	3.7 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	25 A
Fastening Type	Latch Holder
Features	Potting Wall, Mounting Flange, Board Lock, Sealed
Ingress Protection	IP67
Insulation Color	Black
Insulation Height	36.5 mm
Insulation Height	1.437 in
Insulation Material	Thermoplastic
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	6.71 mm
Pitch - Mating	0.264 in
Row Spacing - Mating	0.276 in
Row Spacing - Mating	7 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

ATP13-4P Series

Part	Pitch - Mating	Pitch - Mating	Number of Positions	Features	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Connector Type	Current Rating (Amps)	Voltage Rating	Insulation Material	Contact Finish - Post	Mounting Type	Insulation Color	Contact Shape	Ingress Protection	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Type	Insulation Height	Insulation Height	Style	Number of Rows	Fastening Type	Contact Finish - Mating
Amphenol Sine Systems Corp ATP13-4P-BM04BLK	6.71 mm	0.264 in	4	Board Lock Mounting Flange Potting Wall Sealed	0.276 in	7 mm	Copper Alloy	Receptacle	25 A	250 VDC	Thermoplastic	Tin	Panel Mount Right Angle Through Hole	Black	Circular	IP67	All	0.146 in	3.7 mm	Solder	-55 °C	125 °C	Shrouded - 4 Wall	Male Pin	36.5 mm	1.437 in	Board to Cable/Wire	2	Latch Holder
Amphenol Sine Systems Corp ATP13-4P-BM02GRY	6.71 mm	0.264 in	4	Board Lock Mounting Flange Potting Wall Sealed	0.276 in	7 mm	Copper Alloy	Receptacle	25 A	250 VDC	Thermoplastic	Gold	Panel Mount Right Angle Through Hole	Gray	Circular	IP67	All	0.146 in	3.7 mm	Solder	-55 °C	125 °C	Shrouded - 4 Wall	Male Pin	36.5 mm	1.437 in	Board to Cable/Wire	2	Latch Holder	Gold
Amphenol Sine Systems Corp ATP13-4P-BM03GRY	6.71 mm	0.264 in	4	Board Lock Mounting Flange Sealed	0.276 in	7 mm	Copper Alloy	Receptacle	25 A	250 VDC	Thermoplastic	Tin	Panel Mount Right Angle Through Hole	Gray	Circular	IP67	All	0.146 in	3.7 mm	Solder	-55 °C	125 °C	Shrouded - 4 Wall	Male Pin	36.5 mm	1.437 in	Board to Cable/Wire	2	Latch Holder
Amphenol Sine Systems Corp ATP13-4P-BM01BLK	6.71 mm	0.264 in	4	Board Lock Mounting Flange Sealed	0.276 in	7 mm	Copper Alloy	Receptacle	25 A	250 VDC	Thermoplastic	Gold	Panel Mount Right Angle Through Hole	Black	Circular	IP67	All	0.146 in	3.7 mm	Solder	-55 °C	125 °C	Shrouded - 4 Wall	Male Pin	36.5 mm	1.437 in	Board to Cable/Wire	2	Latch Holder	Gold
Amphenol Sine Systems Corp ATP13-4P-BM04GRY	6.71 mm	0.264 in	4	Board Lock Mounting Flange Potting Wall Sealed	0.276 in	7 mm	Copper Alloy	Receptacle	25 A	250 VDC	Thermoplastic	Tin	Panel Mount Right Angle Through Hole	Gray	Circular	IP67	All	0.146 in	3.7 mm	Solder	-55 °C	125 °C	Shrouded - 4 Wall	Male Pin	36.5 mm	1.437 in	Board to Cable/Wire	2	Latch Holder
Amphenol Sine Systems Corp ATP13-4P-BM02BLK	6.71 mm	0.264 in	4	Board Lock Mounting Flange Potting Wall Sealed	0.276 in	7 mm	Copper Alloy	Receptacle	25 A	250 VDC	Thermoplastic	Gold	Panel Mount Right Angle Through Hole	Black	Circular	IP67	All	0.146 in	3.7 mm	Solder	-55 °C	125 °C	Shrouded - 4 Wall	Male Pin	36.5 mm	1.437 in	Board to Cable/Wire	2	Latch Holder	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.02
		10	$ 18.41
		25	$ 17.61

Description

General part information

ATP13-4P Series

Connector Header Panel Mount, Through Hole, Right Angle 4 position 0.264" (6.71mm)
