A06XAF06XAF22K305A

Active

JST Sales America Inc.

JUMPER 06XAF-2S - 06XAF-2S 12"

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER 06XAF-2S - 06XAF-2S 12"

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Number of Rows	Length	Length	Length	Contact Finish	Number of Positions	Cable Termination	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Length [x]	Length
JST Sales America Inc. A06XAF06XAF22K203B	Socket to Socket	1	0.667 ft	8 in	203.2 mm	Tin	6	IDC	2.5 mm	0.098 in
JST Sales America Inc. A06XAF06XAF22K51B	Socket to Socket	1	0.167 '	2 "	50.8 mm	Tin	6	IDC	2.5 mm	0.098 in
JST Sales America Inc. A06XAF06XAF22K203A	Socket to Socket Reversed	1	0.667 ft	8 in	203.2 mm	Tin	6	IDC	2.5 mm	0.098 in
JST Sales America Inc. A06XAF06XAF22K305B	Socket to Socket	1	1 ft		304.8 mm	Tin	6	IDC	2.5 mm	0.098 in
JST Sales America Inc. A06XAF06XAF22K254B	Socket to Socket	1	0.833 ft	10 in	254 mm	Tin	6	IDC	2.5 mm	0.098 in
JST Sales America Inc. A06XAF06XAF22K102B	Socket to Socket	1				Tin	6	IDC	2.5 mm	0.098 in	4 "	0.333 ft	101.6 mm
JST Sales America Inc. A06XAF06XAF22K51A	Socket to Socket Reversed	1	0.167 '	2 "	50.8 mm	Tin	6	IDC	2.5 mm	0.098 in
JST Sales America Inc. A06XAF06XAF22K152A	Socket to Socket Reversed	1		6 "	152.4 mm	Tin	6	IDC	2.5 mm	0.098 in				0.5 '
JST Sales America Inc. A06XAF06XAF22K305A	Socket to Socket Reversed	1	1 ft		304.8 mm	Tin	6	IDC	2.5 mm	0.098 in
JST Sales America Inc. A06XAF06XAF22K254A	Socket to Socket Reversed	1	0.833 ft	10 in	254 mm	Tin	6	IDC	2.5 mm	0.098 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

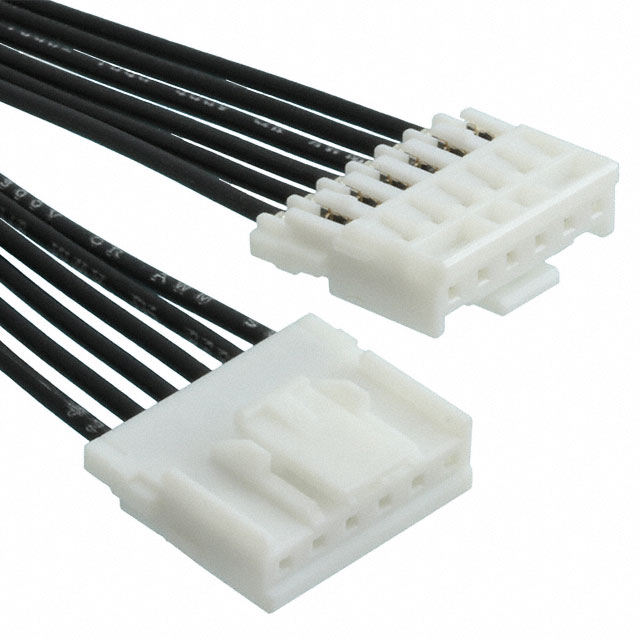

6 Position Cable Assembly Rectangular Socket to Socket, Reversed 1.00' (304.80mm)
