S4EB-24V
ActivePanasonic Electric Works
RELAY GEN PURPOSE 4PST 4A 24V
Deep-Dive with AI
Search across all available documentation for this part.

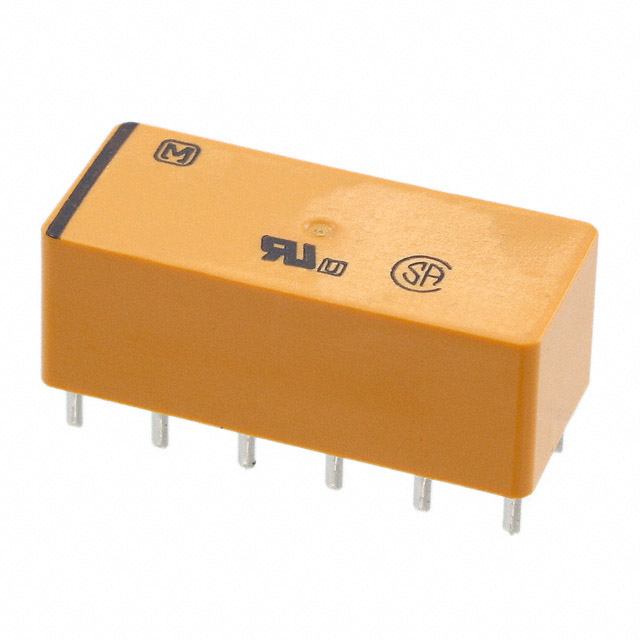

S4EB-24V
ActivePanasonic Electric Works
RELAY GEN PURPOSE 4PST 4A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S4EB-24V |
|---|---|
| Approval Agency | CSA, UR |
| Coil Current | 8.4 mA |
| Coil Resistance | 2.85 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | 4PST-NO (4 Form A) |
| Contact Material | Silver Alloy, Cadmium Free |
| Contact Rating (Current) | 4 A |
| Load - Max Switching | 1000 VA, 192 W |
| Mounting Type | Through Hole |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -55 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage | 48 VDC, 250 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 15.91 | |
| 10 | $ 14.14 | |||
| 25 | $ 13.43 | |||
| 50 | $ 12.73 | |||
| 100 | $ 12.02 | |||
| 250 | $ 10.96 | |||
| 500 | $ 10.25 | |||
| 1000 | $ 9.72 | |||
Description
General part information
S4EB-2 Series
General Purpose Relay 4PST-NO (4 Form A) 24VDC Coil Through Hole
