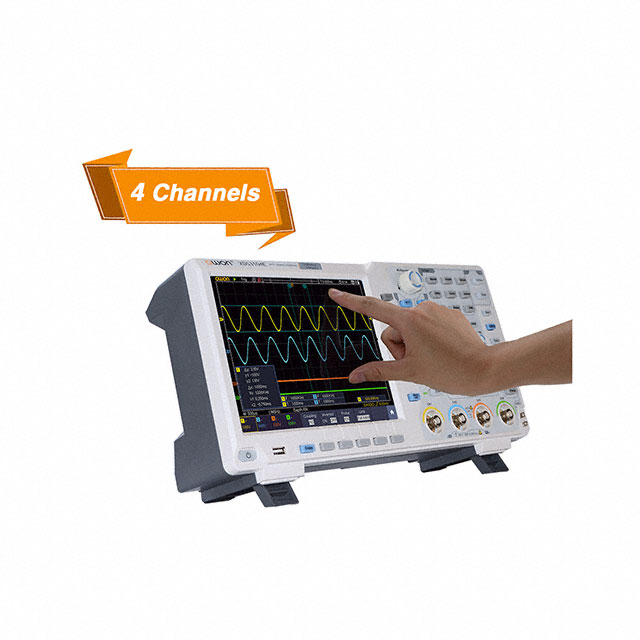

XDS3204EVMWAG21
ActiveOwon Technology Lilliput Electronics (USA) Inc
O-SCOPE 200MHZ 4 CH 1GS/S
Deep-Dive with AI
Search across all available documentation for this part.
XDS3204EVMWAG21
ActiveOwon Technology Lilliput Electronics (USA) Inc
O-SCOPE 200MHZ 4 CH 1GS/S
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XDS3204EVMWAG21 |
|---|---|
| Bandwidth | 200 MHz |
| Channels | 4 |
| Display Type | LCD - Color |
| Function | Record |
| Input Impedance | 1 M, 15 pF |
| Interface | Ethernet, USB, Wifi, RS232 |
| Rise Time (Typ) | 1.75 ns |
| Sampling Rate (Per Second) | 1 G |
| Type | Bench |
| Voltage - Input (Max) [Max] | 400 V |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 100 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1299.00 | |
Description
General part information
XDS3204 Series
200 MHz Bench Oscilloscopes Ethernet, RS232, USB, WiFi Interface LCD - Color Display 4 Channel CAT II 400V Record
Documents
Technical documentation and resources
No documents available
