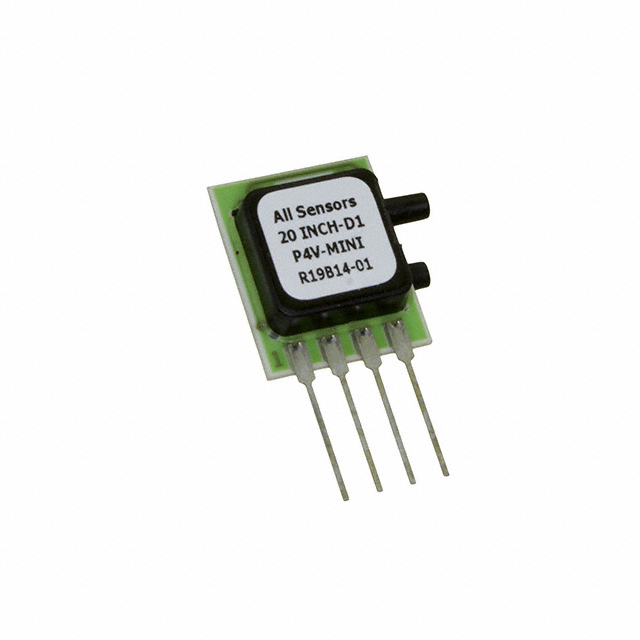

20 INCH-D1-P4V-MINI

Active

Amphenol All Sensors Corporation

SENSOR 0.72PSID 0.08" 4.25V

Deep-Dive with AI

Search across all available documentation for this part.

20 INCH-D1-P4V-MINI

Active

Amphenol All Sensors Corporation

SENSOR 0.72PSID 0.08" 4.25V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	20 INCH-D1-P4V-MINI

Accuracy	0.25 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure	10.84 PSI
Maximum Pressure	74.75 kPa
Mounting Type	Through Hole
Operating Pressure	0.72 PSI
Operating Pressure	4.96 kPa
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output [Max]	4.25 V
Output [Min]	0.25 V
Output Type	Analog Voltage
Package / Case	4-SIP Module
Port Size [x]	2.03 mm
Port Size [x]	0.08 "
Port Style	Barbless
Pressure Type	Differential
Termination Style	PC Pin
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

D1-P4V-MINI Series

Part	Accuracy	Termination Style	Pressure Type	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Mounting Type	Applications	Maximum Pressure	Maximum Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Output [Min]	Output [Max]	Port Size [x]	Port Size [x]	Port Style	Operating Pressure	Operating Pressure	Features	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Max]
Amphenol All Sensors Corporation 10 INCH-D1-P4V-MINI	0.25 %	PC Pin	Differential	4-SIP Module	4.5 V	5.5 V	Analog Voltage	Through Hole	Board Mount	7.23 PSI	49.83 kPa	125 °C	-40 °C	0.25 V	4.25 V	2.03 mm	0.08 "	Barbless	2.49 kPa	0.36 PSI	Amplified Output Temperature Compensated
Amphenol All Sensors Corporation 5 CMH2O-D1-P4V-MINI	0.25 %	PC Pin	Differential	4-SIP Module	4.5 V	5.5 V	Analog Voltage	Through Hole	Board Mount	0.71 PSI	4.9 kPa	85 °C	-25 °C	0.18 V	4.5 V	2.03 mm	0.08 "	Barbless			Amplified Output Temperature Compensated	-0.003 PSI	0.07 PSI	-0.02 kPa	0.49 kPa
Amphenol All Sensors Corporation 20 CMH2O-D1-P4V-MINI	0.25 %	PC Pin	Differential	4-SIP Module	4.5 V	5.5 V	Analog Voltage	Through Hole	Board Mount	1.42 PSI	9.79 kPa	85 °C	-25 °C	0.3 V	4.5 V	2.03 mm	0.08 "	Barbless			Amplified Output Temperature Compensated	-0.003 PSI	0.28 PSI	-0.02 kPa		1.96 kPa
Amphenol All Sensors Corporation 30 INCH-D1-P4V-MINI	0.25 %	PC Pin	Differential	4-SIP Module	4.5 V	5.5 V	Analog Voltage	Through Hole	Board Mount	18.07 PSI	124.59 kPa	125 °C	-40 °C	0.25 V	4.25 V	2.03 mm	0.08 "	Barbless	7.48 kPa	1.08 PSI	Amplified Output Temperature Compensated
Amphenol All Sensors Corporation 20 INCH-D1-P4V-MINI	0.25 %	PC Pin	Differential	4-SIP Module	4.5 V	5.5 V	Analog Voltage	Through Hole	Board Mount	10.84 PSI	74.75 kPa	125 °C	-40 °C	0.25 V	4.25 V	2.03 mm	0.08 "	Barbless	4.96 kPa	0.72 PSI	Amplified Output Temperature Compensated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 52.70
		10	$ 50.73

Description

General part information

D1-P4V-MINI Series

Pressure Sensor ±0.72PSI (±4.96kPa) Differential Male - 0.08" (2.03mm) Tube, Dual 0.25 V ~ 4.25 V 4-SIP Module
