UG-657/U(40)
ActiveHirose Electric USA, Inc.
CONN BNC RCPT STR 50 OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UG-657/U(40)
ActiveHirose Electric USA, Inc.
CONN BNC RCPT STR 50 OHM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UG-657/U(40) |
|---|---|
| Body Finish | Silver |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Silver |
| Connector Style | BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |

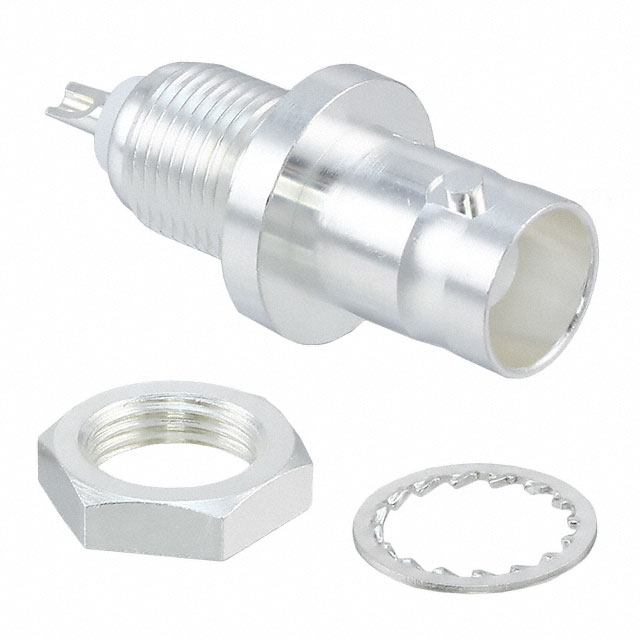

| Includes | 1 Nut, 1 Connector, 1 Lockwasher |
| Mating Cycles | 1000 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 16.37 | |
| 10 | $ 14.19 | |||
| 25 | $ 13.45 | |||
| 50 | $ 13.26 | |||
| 125 | $ 11.70 | |||
| 250 | $ 10.92 | |||
| 500 | $ 10.68 | |||
Description
General part information
UG-657/U Series
BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
