50.11213PA/SW

Active

Jacob GmbH

CABLE GLAND 6-12MM 1/2" NPT

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 6-12MM 1/2" NPT

Technical Specifications

Parameters and characteristics for this part

Specification	50.11213PA/SW

Color	Black
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.472 in
Outside Cable Diameter (Max) [Max] [diameter]	12 mm
Outside Cable Diameter (Min) [Min] [diameter]	6 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.236 in
Thread Length	14.5 mm
Thread Length	0.571 in
Thread Size	1/2" NPT
Type	Cable Gland

Part	Includes	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Type	Ingress Protection	Color	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
Jacob GmbH 50.11213PARSW	Sealing Ring	9 mm	0.354 in	Cable Gland	IP68 - Dust Tight Waterproof	Black	14.5 mm	0.571 in	5 mm	0.197 in	100 °C	-40 °C	1/2" NPT
Jacob GmbH 50.11213PA/SW	Sealing Ring		12 mm	Cable Gland	IP68 - Dust Tight Waterproof	Black	14.5 mm	0.571 in			100 °C	-40 °C	1/2" NPT	6 mm	0.236 in	0.472 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

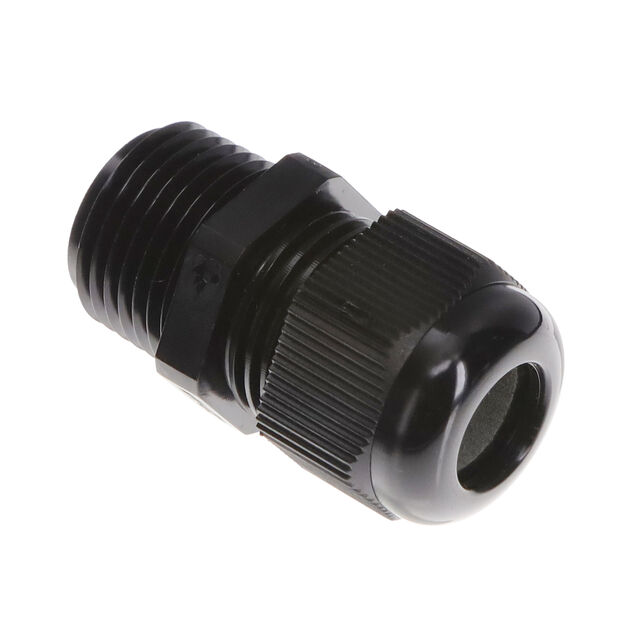

Cable Gland Polyamide (PA6), Nylon 6 1/2" NPT Black

Technical documentation and resources
