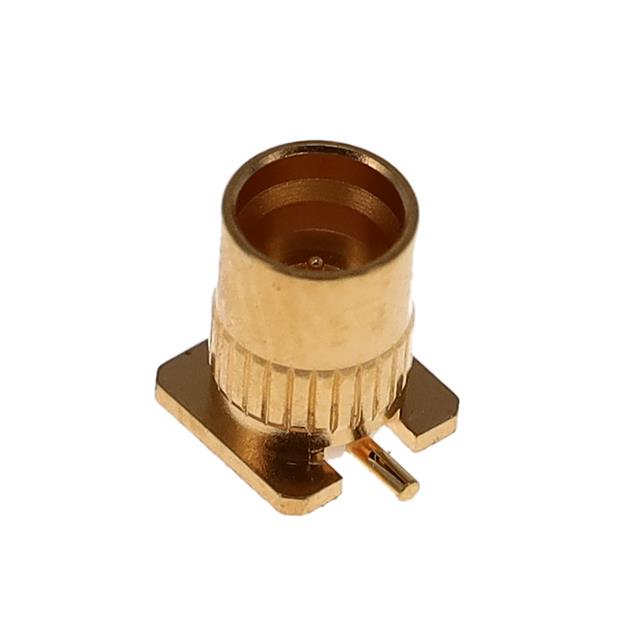

19S10A-40ML5

Active

Rosenberger

STRAIGHT PLUG PCB

Search across all available documentation for this part.

Active

Rosenberger

STRAIGHT PLUG PCB

Technical Specifications

Parameters and characteristics for this part

Specification	19S10A-40ML5

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Limited Detent
Frequency - Max [Max]	26.5 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Center Contact Material	Mounting Type	Body Material	Shield Termination	Fastening Type	Impedance	Contact Termination	Number of Ports	Body Finish	Frequency - Max [Max]	Connector Type	Center Contact Plating	Mating Cycles	Housing Color	Dielectric Material	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating
Rosenberger 19S10A-400L5	Brass	Surface Mount Through Hole	Brass	Solder	Snap-On	50 Ohms	Solder	1	Gold	26.5 GHz	Male Pin Plug	Gold	500	Gold	Liquid Crystal Polymer (LCP)	Limited Detent	155 °C	-65 ░C	335 V
Rosenberger 19S10A-40ML5	Brass	Surface Mount	Brass	Solder	Snap-On	50 Ohms	Solder	1	Gold	26.5 GHz	Male Pin Plug	Gold	500	Gold	Polytetrafluoroethylene (PTFE)	Limited Detent	155 °C	-65 ░C	335 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMP Connector Plug, Male Pin 50 Ohms Surface Mount Solder
