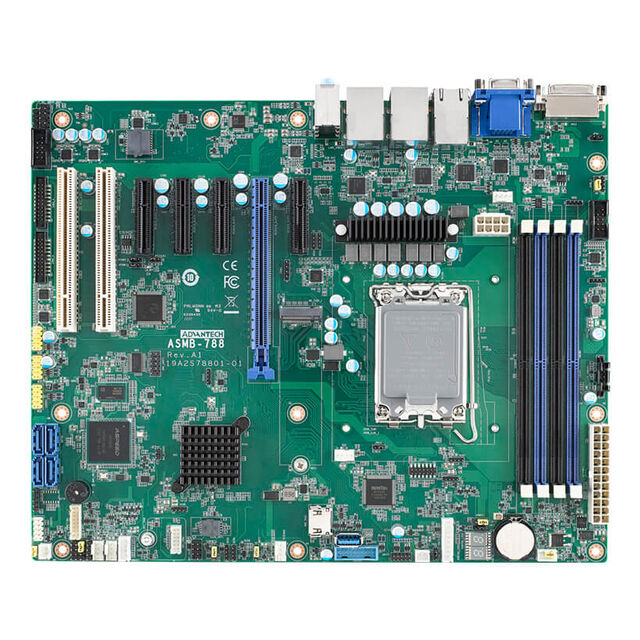

ASMB-788G2-00A1

Active

Advantech Corp

SBC 3.9GHZ 16 CORE 128GB/0GB RAM

Search across all available documentation for this part.

Active

Advantech Corp

SBC 3.9GHZ 16 CORE 128GB/0GB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	ASMB-788G2-00A1

Cooling Type	Fan
Core Processor	Intel 13th/ 12th Gen Core i9/i7/i5/i3 LGA 1700
Ethernet	GbE, RJ45
Ethernet	10 Mbps, 100 Mbps, 1000 Mbps
Expansion Site/Bus	Audio, M.2, PCIe, SPI, SATA
Form Factor	ATX
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
RAM Capacity/Installed	0 GB, 128 GB
RS-232 (422, 485)	2
Size / Dimension	244 mm, 304.8 mm
Size / Dimension [x]	12 in
Size / Dimension [y]	9.606 in
Storage Interface	M.2, SATA 3.0 (4)
USB	USB 3.2 Gen 1 Type-A (1), USB 3.2 Gen 1 (2), USB 3.2 Gen 2 (4), USB 2.0 (6)
Video Outputs	VGA, DVI-D, HDMI
Watchdog Timer	True

Part	Expansion Site/Bus	Cooling Type	Watchdog Timer	Video Outputs	RS-232 (422, 485)	Core Processor	Storage Interface	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	RAM Capacity/Installed	Ethernet	Ethernet	USB	Form Factor
Advantech Corp ASMB-788G2-00A1	Audio M.2 PCIe SATA SPI	Fan		DVI-D HDMI VGA	2	Intel 13th/ 12th Gen Core i9/i7/i5/i3 LGA 1700	M.2 SATA 3.0 (4)	244 mm 304.8 mm	12 in	9.606 in	60 °C	0 °C	0 GB 128 GB	GbE RJ45	10 Mbps 100 Mbps 1000 Mbps	USB 2.0 (6) USB 3.2 Gen 1 (2) USB 3.2 Gen 1 Type-A (1) USB 3.2 Gen 2 (4)	ATX

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Board Computer Core 128GB/0GB RAM Intel 13th/ 12th Gen Core i9/i7/i5/i3 LGA 1700

Technical documentation and resources

No documents available
