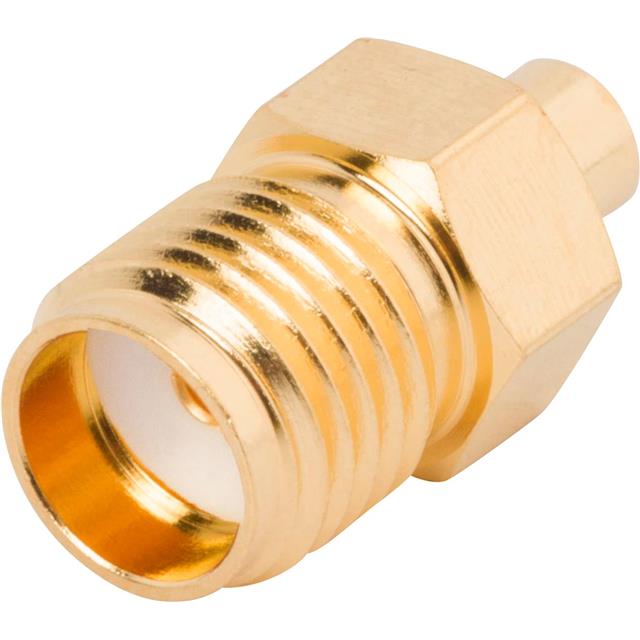

2926-6015

Active

Amphenol SV Microwave

CONN SMA JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN SMA JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	2926-6015

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	Flexible
Cable Group	0.047 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Solder

Part	Mounting Type	Mating Cycles	Connector Style	Center Contact Plating	Body Finish	Body Material	Dielectric Material	Shield Termination	Number of Ports	Cable Group	Cable Group	Impedance	Connector Type	Frequency - Max [Max]	Contact Termination	Center Contact Material	Housing Color
Amphenol SV Microwave 2926-6015	Free Hanging (In-Line)	500	SMA	Gold	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)	Solder	1	Flexible	0.047 in	50 Ohms	Female Socket Jack	18 GHz	Solder	Beryllium Copper	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 52.39

General part information

SMA Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
