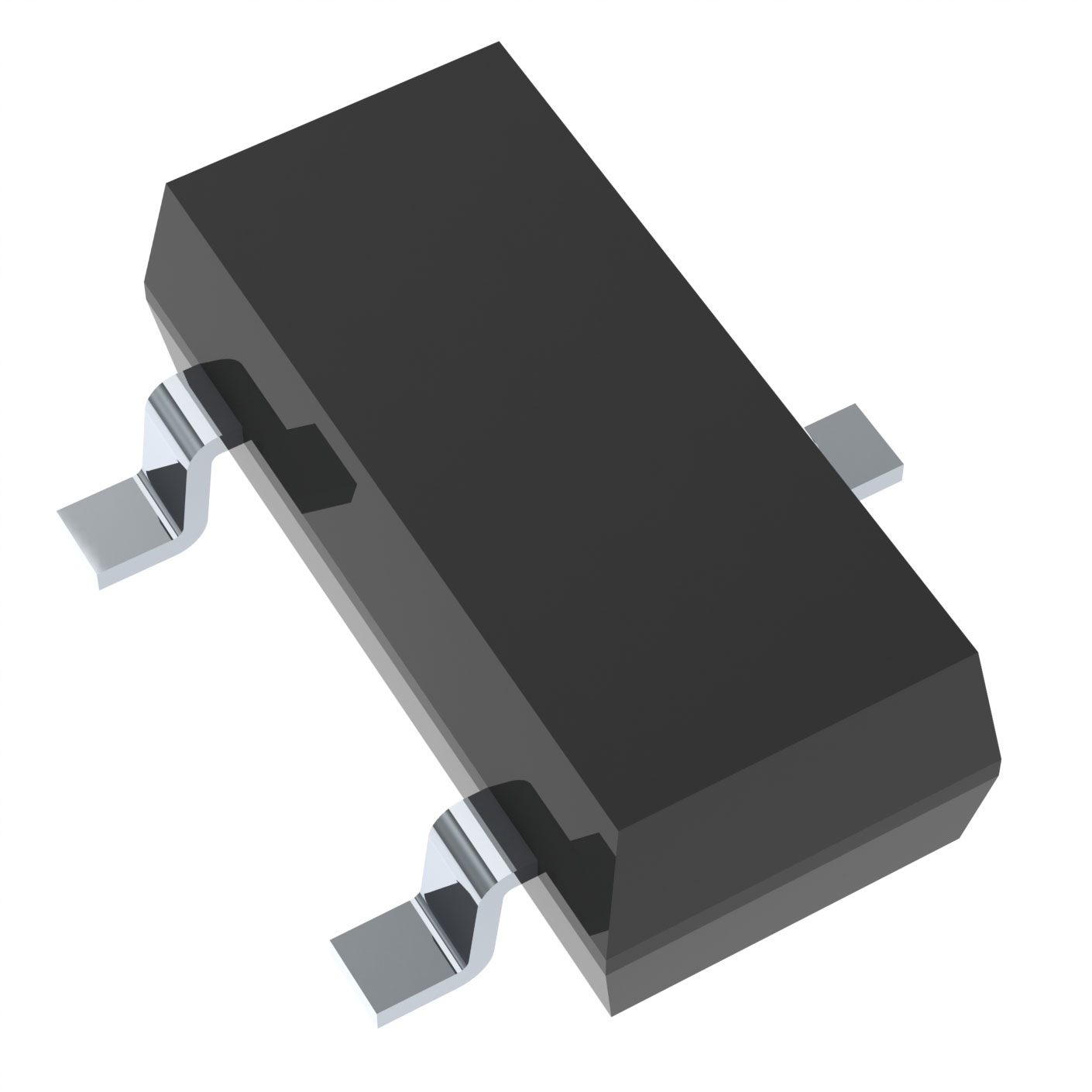

RT9819D-29PV

Active

Richtek USA Inc.

IC SUPERVISOR 1 CHANNEL SC70-3

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RT9819D-29PV

Active

Richtek USA Inc.

IC SUPERVISOR 1 CHANNEL SC70-3

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT9819D-29PV

Mounting Type	Surface Mount
Number of Voltages Monitored	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	Totem Pole, Push-Pull
Package / Case	SOT-23-3, TO-236-3, SC-59
Reset	Active Low
Reset Timeout	292 ms
Supplier Device Package	SOT-23-3
Type	Voltage Detector
Voltage - Threshold	2.9 V

RT9819 Series

Part	Voltage - Threshold	Reset	Number of Voltages Monitored	Supplier Device Package	Package / Case	Reset Timeout	Output	Operating Temperature [Max]	Operating Temperature [Min]	Type	Mounting Type	Reset Timeout [Min]
Richtek USA Inc. RT9819D-13GV	1.3 V	Active Low	1	SOT-23-3	SC-59 SOT-23-3 TO-236-3	292 ms	Push-Pull Totem Pole	85 °C	-40 °C	Simple Reset/Power-On Reset	Surface Mount
Richtek USA Inc. RT9819C-42GV	4.2 V	Active Low	1	SOT-23-3	SC-59 SOT-23-3 TO-236-3		Push-Pull Totem Pole	85 °C	-40 °C	Simple Reset/Power-On Reset	Surface Mount	143 ms
Richtek USA Inc. RT9819C-23GU3	2.3 V	Active Low	1	SC-70-3	SC-70 SOT-323		Push-Pull Totem Pole	85 °C	-40 °C	Simple Reset/Power-On Reset	Surface Mount	143 ms
Richtek USA Inc. RT9819A-36GV	3.6 V	Active Low	1	SOT-23-3	SC-59 SOT-23-3 TO-236-3	0 ms	Push-Pull Totem Pole	85 °C	-40 °C	Simple Reset/Power-On Reset	Surface Mount
Richtek USA Inc. RT9819A-27GV	2.7 V	Active Low	1	SOT-23-3	SC-59 SOT-23-3 TO-236-3	0 ms	Push-Pull Totem Pole	85 °C	-40 °C	Simple Reset/Power-On Reset	Surface Mount
Richtek USA Inc. RT9819A-33GV	3.3 V	Active Low	1	SOT-23-3	SC-59 SOT-23-3 TO-236-3	0 ms	Push-Pull Totem Pole	85 °C	-40 °C	Simple Reset/Power-On Reset	Surface Mount
Richtek USA Inc. RT9819B-20GV	2 V	Active Low	1	SOT-23-3	SC-59 SOT-23-3 TO-236-3	35 ms	Push-Pull Totem Pole	85 °C	-40 °C	Simple Reset/Power-On Reset	Surface Mount
Richtek USA Inc. RT9819C-29GV	2.9 V	Active Low	1	SOT-23-3	SC-59 SOT-23-3 TO-236-3		Push-Pull Totem Pole	85 °C	-40 °C	Simple Reset/Power-On Reset	Surface Mount	143 ms
Richtek USA Inc. RT9819D-29PV	2.9 V	Active Low	1	SOT-23-3	SC-59 SOT-23-3 TO-236-3	292 ms	Push-Pull Totem Pole	85 °C	-40 °C	Voltage Detector	Surface Mount
Richtek USA Inc. RT9819C-31GV	3.1 V	Active Low	1	SOT-23-3	SC-59 SOT-23-3 TO-236-3		Push-Pull Totem Pole	85 °C	-40 °C	Simple Reset/Power-On Reset	Surface Mount	143 ms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.74
	Digi-Reel®	1	$ 0.74
	Tape & Reel (TR)	3000	$ 0.13

Description

General part information

RT9819 Series

Supervisor Push-Pull, Totem Pole 1 Channel SOT-23-3

Documents

Technical documentation and resources
