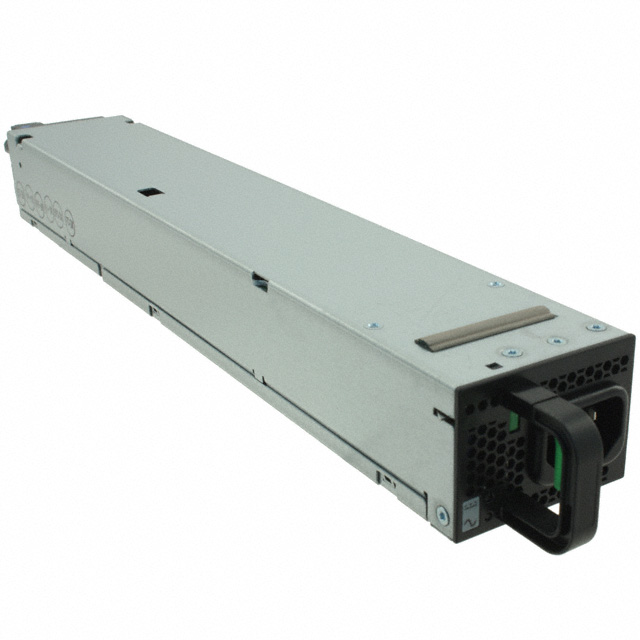

PFE850-12-054NA

Active

EOS Power India Private Ltd

AC/DC CONVERTER 12V 5V 850W

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

AC/DC CONVERTER 12V 5V 850W

Technical Specifications

Parameters and characteristics for this part

Specification	PFE850-12-054NA

Applications	ITE (Commercial)
Approval Agency	CE, NEMKO
Current - Output 1	70 A
Current - Output 2	3.3 A
Efficiency	94 %
Features	Load Sharing, Universal Input, Standby Output, I2C Interface, Remote Sense, Hot Swappable, Adjustable Output, PFC
Mounting Type	Rack Mount
Number of Outputs	2
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	0 °C
Size / Dimension [x]	14.17 in
Size / Dimension [x]	360 mm
Size / Dimension [y]	2.15 "
Size / Dimension [y]	54.5 mm
Size / Dimension [z]	1.57 "
Size / Dimension [z]	40 mm
Standard Number	62368-1
Type	Front End
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	12 V
Voltage - Output 2	5 V

Part	Voltage - Output 2	Approval Agency	Efficiency	Current - Output 2	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Applications	Standard Number	Mounting Type	Features	Number of Outputs	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Type
EOS Power India Private Ltd PFE850-12-054NA	5 V	CE NEMKO	94 %	3.3 A	2.15 "	54.5 mm	1.57 "	14.17 in	40 mm	360 mm	ITE (Commercial)	62368-1	Rack Mount	Adjustable Output Hot Swappable I2C Interface Load Sharing PFC Remote Sense Standby Output Universal Input	2	12 V	90 VAC	264 VAC	70 A	0 °C	65 °C	Front End
