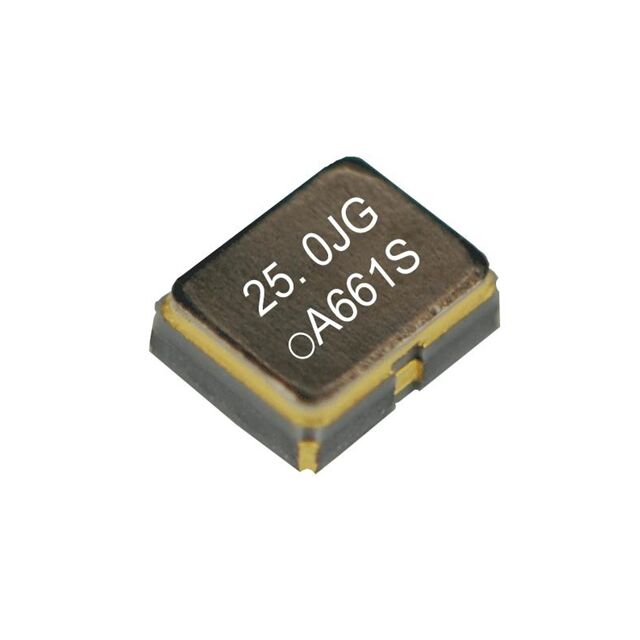

SG2016CAN 16.0000M-TJGA0

Active

EPSON

SG2016CAN 16.0000M-TJGA0: SMD XT

Search across all available documentation for this part.

Active

EPSON

SG2016CAN 16.0000M-TJGA0: SMD XT

Technical Specifications

Parameters and characteristics for this part

Specification	SG2016CAN 16.0000M-TJGA0

Base Resonator	Crystal
Current - Supply (Disable) (Max) [Max]	2.7 µA
Current - Supply (Max) [Max]	1.8 mA
Frequency	16 MHz
Frequency Stability	50 ppm
Function	Standby (Power Down)
Height - Seated (Max) [Max] [z]	0.8 mm
Height - Seated (Max) [Max] [z]	0.031 "
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	CMOS
Package / Case	4-SMD, No Lead
Size / Dimension [x]	2 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Supplier Device Package	4-SMD (2x1.6)
Type	XO (Standard)
Voltage - Supply [Max]	3.3 V
Voltage - Supply [Min]	1.8 V

Part	Frequency	Base Resonator	Function	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current - Supply (Max) [Max]	Package / Case	Output	Current - Supply (Disable) (Max) [Max]	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency Stability	Mounting Type
EPSON SG2016CAN 16.0000M-TJGA0	16 MHz	Crystal	Standby (Power Down)	0.8 mm	0.031 "	2 mm	0.063 in	1.6 mm	0.079 in	85 °C	-40 °C	XO (Standard)	1.8 mA	4-SMD No Lead	CMOS	2.7 µA	4-SMD (2x1.6)	3.3 V	1.8 V	50 ppm	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.48

General part information

16 MHz XO (Standard) CMOS Oscillator 1.8V ~ 3.3V Standby (Power Down) 4-SMD, No Lead
