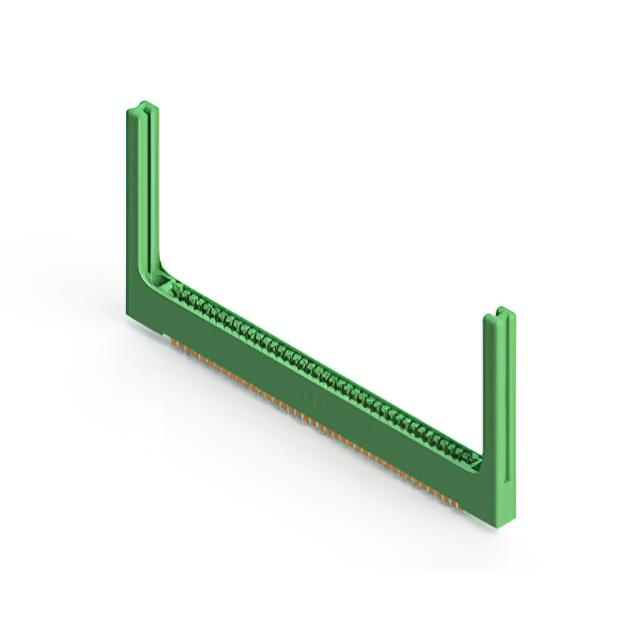

346-080-555-258
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 80POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
346-080-555-258
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 80POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-080-555-258 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 80 |
| Number of Positions/Bay/Row [custom] | 40 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
346-080 Series
| Part | Contact Type | Contact Finish | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Flange Feature | Card Type | Number of Rows | Read Out | Material - Insulation | Features | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Color | Gender | Termination Rows | Contact Material | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Number of Positions | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Cantilever | Gold | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | 2 | Dual | Polyester Thermoplastic | Card Guides | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Green | Female | 2 | Copper Alloy | 0.125 in | 3.18 mm | 40 | 80 | ||||
EDAC Inc. | Cantilever | Gold | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | 2 | Dual | Polyester Thermoplastic | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Green | Female | 2 | Copper Alloy | 0.125 in | 3.18 mm | 40 | 80 | |||||
EDAC Inc. | Cantilever | Gold | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Side Mount Opening Unthreaded | Non Specified - Dual Edge | 2 | Dual | Polyester Thermoplastic | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Green | Female | 2 | Copper Alloy | 0.125 in | 3.18 mm | 40 | 80 | 3.25 mm | 0.128 in | |||
EDAC Inc. | Cantilever | Gold | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | 2 | Dual | Polyester Thermoplastic | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Green | Female | 2 | Copper Alloy | 0.125 in | 3.18 mm | 40 | 80 | |||||
EDAC Inc. | Cantilever | Gold | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | 2 | Dual | Polyester Thermoplastic | Card Guides | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Green | Female | 2 | Copper Alloy | 0.125 in | 3.18 mm | 40 | 80 | ||||
EDAC Inc. | Cantilever | Gold | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | M3 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | 2 | Dual | Polyester Thermoplastic | Card Extender | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Green | Female | 2 | Copper Alloy | 0.125 in | 3.18 mm | 40 | 80 | ||||
EDAC Inc. | Cantilever | Gold | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Wire Wrap | Side Mount Opening Unthreaded | Non Specified - Dual Edge | 2 | Dual | Polyester Thermoplastic | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Green | Female | 2 | Copper Alloy | 0.125 in | 3.18 mm | 40 | 80 | 3.25 mm | 0.128 in | |||
EDAC Inc. | Cantilever | Gold | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Top Mount Opening Unthreaded | Non Specified - Dual Edge | 2 | Dual | Polyester Thermoplastic | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Green | Female | 2 | Copper Alloy | 0.125 in | 3.18 mm | 40 | 80 | 0.156 in | 3.96 mm | |||
EDAC Inc. | Cantilever | Gold | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Non Specified - Dual Edge | 2 | Dual | Polyester Thermoplastic | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Green | Female | 2 | Copper Alloy | 0.125 in | 3.18 mm | 40 | 80 | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Cantilever | Gold | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Side Mount Opening Unthreaded | Non Specified - Dual Edge | 2 | Dual | Polyester Thermoplastic | Card Extender | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Green | Female | 2 | Copper Alloy | 0.125 in | 3.18 mm | 40 | 80 | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 14.78 | |
Description
General part information
346-080 Series
80 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
