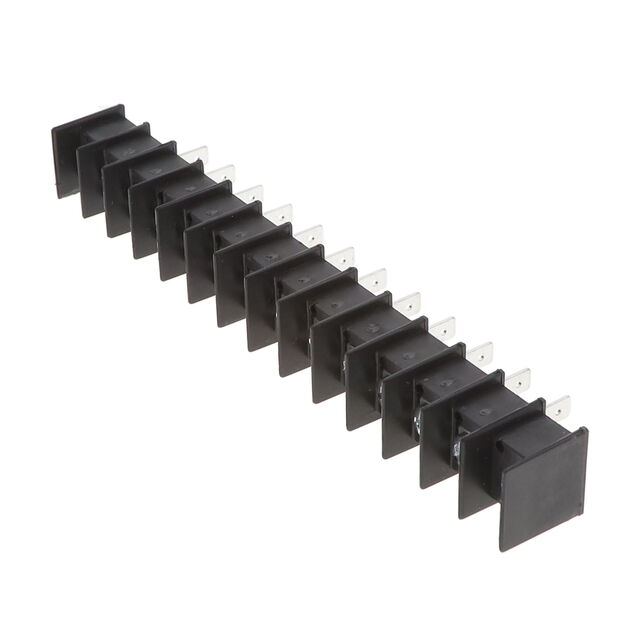

430400-12-0

Active

Curtis Industries

CONN BARRIER STRP 12CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Terminal Blocks Catalog

430400-12-0

Active

Curtis Industries

CONN BARRIER STRP 12CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet Terminal Blocks Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	430400-12-0

Barrier Type	2 Wall (Dual)
Bottom Termination	0.187 in
Bottom Termination	Quick Connect
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	12
Number of Rows	1
Number of Wire Entries	12
Operating Temperature	105 C
Pitch [x]	11.12 mm
Pitch [x]	0.438 in
Terminal Block Type	Barrier Block
Terminal Screw Finish	Zinc
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	600 V
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

430400 Series

Part	Operating Temperature	Wire Gauge [Min]	Wire Gauge [Max]	Terminal Screw Material	Terminal Block Type	Features	Mounting Type	Barrier Type	Material Flammability Rating	Voltage Rating	Number of Rows	Terminal Screw Finish	Bottom Termination	Bottom Termination	Number of Wire Entries [custom]	Material - Insulation	Current Rating (Amps)	Number of Circuits	Top Termination	Number of Wire Entries	Pitch [x]	Pitch [x]
Curtis Industries 430400-01-0	105 C	12 AWG	22 AWG	Steel	Barrier Block	Flange	Chassis Panel	2 Wall (Dual)	UL94 V-0	600 V	1	Zinc	0.187 in	Quick Connect	1	Polypropylene (PP)	20 A	1	Screws
Curtis Industries 430400-09-0	105 C	12 AWG	22 AWG	Steel	Barrier Block	Flange	Chassis Panel	2 Wall (Dual)	UL94 V-0	600 V	1	Zinc	0.187 in	Quick Connect		Polypropylene (PP)	20 A		Screws	9	11.12 mm	0.438 in
Curtis Industries 430400-10-0	105 C	12 AWG	22 AWG	Steel	Barrier Block	Flange	Chassis Panel	2 Wall (Dual)	UL94 V-0	600 V	1	Zinc	0.187 in	Quick Connect		Polypropylene (PP)	20 A	10	Screws	10	11.12 mm	0.438 in
Curtis Industries 430400-17-0	105 C	12 AWG	22 AWG	Steel	Barrier Block	Flange	Chassis Panel	2 Wall (Dual)	UL94 V-0	600 V	1	Zinc	0.187 in	Quick Connect		Polypropylene (PP)	20 A	17	Screws	17	11.12 mm	0.438 in
Curtis Industries 430400-14-0	105 C	12 AWG	22 AWG	Steel	Barrier Block	Flange	Chassis Panel	2 Wall (Dual)	UL94 V-0	600 V	1	Zinc	0.187 in	Quick Connect		Polypropylene (PP)	20 A	14	Screws	14	11.12 mm	0.438 in
Curtis Industries 430400-21-0	105 C	12 AWG	22 AWG	Steel	Barrier Block	Flange	Chassis Panel	2 Wall (Dual)	UL94 V-0	600 V	1	Zinc	0.187 in	Quick Connect		Polypropylene (PP)	20 A	21	Screws	21	11.12 mm	0.438 in
Curtis Industries 430400-07-0	105 C	12 AWG	22 AWG	Steel	Barrier Block	Flange	Chassis Panel	2 Wall (Dual)	UL94 V-0	600 V	1	Zinc	0.187 in	Quick Connect		Polypropylene (PP)	20 A	7	Screws	7	11.12 mm	0.438 in
Curtis Industries 430400-15-0	105 C	12 AWG	22 AWG	Steel	Barrier Block	Flange	Chassis Panel	2 Wall (Dual)	UL94 V-0	600 V	1	Zinc	0.187 in	Quick Connect		Polypropylene (PP)	20 A	15	Screws	15	11.12 mm	0.438 in
Curtis Industries 430400-18-0	105 C	12 AWG	22 AWG	Steel	Barrier Block	Flange	Chassis Panel	2 Wall (Dual)	UL94 V-0	600 V	1	Zinc	0.187 in	Quick Connect		Polypropylene (PP)	20 A	18	Screws	18	11.12 mm	0.438 in
Curtis Industries 430400-12-0	105 C	12 AWG	22 AWG	Steel	Barrier Block	Flange	Chassis Panel	2 Wall (Dual)	UL94 V-0	600 V	1	Zinc	0.187 in	Quick Connect		Polypropylene (PP)	20 A	12	Screws	12	11.12 mm	0.438 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.43
		10	$ 8.08
		25	$ 7.71
		50	$ 6.93
		100	$ 6.56
		250	$ 5.95
		500	$ 5.54
		1000	$ 5.23

Description

General part information

430400 Series

12 Circuit 0.438" (11.12mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Datasheet

Terminal Blocks Catalog
