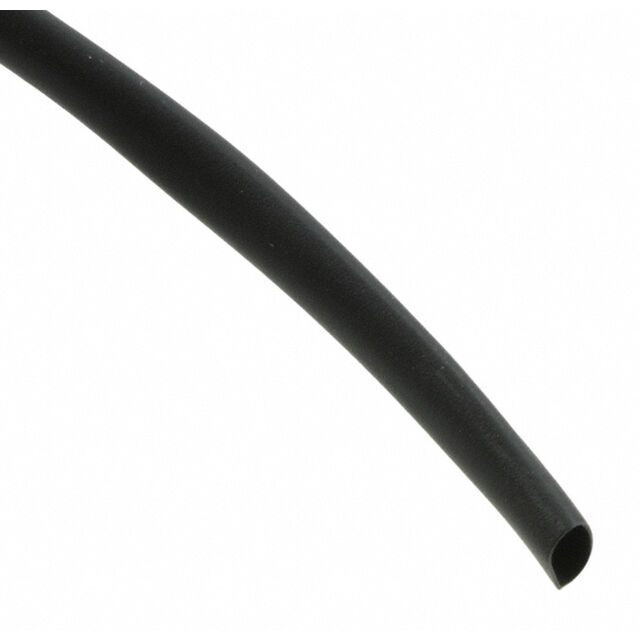

Q2-F3X-1/8-01-SS500FT
ActiveQualtek
HEATSHRINK BLK 1/8X0.75" 50=50PC
Deep-Dive with AI
Search across all available documentation for this part.
Q2-F3X-1/8-01-SS500FT
ActiveQualtek
HEATSHRINK BLK 1/8X0.75" 50=50PC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q2-F3X-1/8-01-SS500FT |
|---|---|
| Color | Black |
| Features | Corrosion Resistant, Flame Retardant |
| Inner Diameter - Recovered [diameter] | 0.039 in |
| Inner Diameter - Recovered [diameter] | 0.99 mm |
| Inner Diameter - Supplied [diameter] | 3.18 mm |
| Inner Diameter - Supplied [diameter] | 0.125 " |
| Length | Enter Number of Feet in Order Quantity |
| Length | 3 ", 2 ", 0.75 " |
| Length | 76.2 mm, 50.8 mm, 19.05 mm |
| Length | 0.25 ft, 0.167 ', 0.062 ' |
| Material | Polyolefin (PO) |
| Operating Temperature [Max] | 135 °C |
| Operating Temperature [Min] | -55 °C |
| Recovered Wall Thickness | 0.56 mm |
| Recovered Wall Thickness | 0.022 " |
| Shelf Life | 60 Months |
| Shrink Temperature | 70 °C |
| Shrinkage Ratio [Max] | 3 |
| Shrinkage Ratio [Min] | 1 |
| Spool Size | 500 ' |
| Spool Size | 152.4 m |
| Storage/Refrigeration Temperature [Max] | 40 °C |
| Storage/Refrigeration Temperature [Min] | -10 °C, -50 °F |
| Type | Tubing, Flexible |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 0.02 | |
| 50 | $ 0.03 | |||
| 50 | $ 0.04 | |||
| 50 | $ 0.03 | |||
| 100 | $ 0.02 | |||
| 100 | $ 0.02 | |||
| 100 | $ 0.04 | |||
| 100 | $ 0.03 | |||
| 250 | $ 0.02 | |||
| 250 | $ 0.02 | |||
| 250 | $ 0.03 | |||
| 250 | $ 0.03 | |||
| 500 | $ 0.02 | |||
| 500 | $ 0.02 | |||
| 500 | $ 0.02 | |||
| 500 | $ 0.03 | |||
| 1250 | $ 0.02 | |||
| 1250 | $ 0.03 | |||
| 1250 | $ 0.02 | |||
| 1250 | $ 0.02 | |||
| Digi-Spool®, Continuous Spool | 1 | $ 0.65 | ||
| 5 | $ 0.59 | |||
| 10 | $ 0.45 | |||
| 25 | $ 0.42 | |||
| 50 | $ 0.40 | |||
| 100 | $ 0.38 | |||
Description
General part information
Q2-F3X-1/8 Series
Heat Shrink Tubing, Flexible 0.125" (3.18mm) 3 to 1 Black 0.062' (19.05mm, 0.75")
