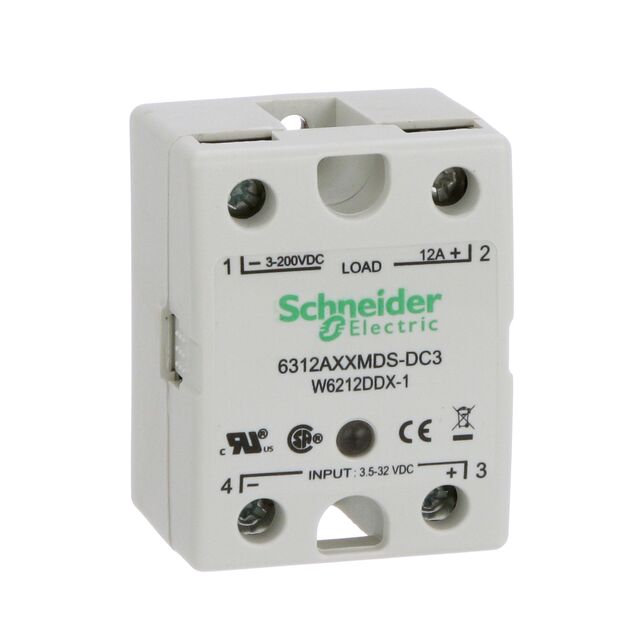

6312AXXMDS-DC3
ObsoleteSQUARE D BY SCHNEIDER ELECTRIC
SOLID STATE RELAY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6312AXXMDS-DC3
ObsoleteSQUARE D BY SCHNEIDER ELECTRIC
SOLID STATE RELAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6312AXXMDS-DC3 |
|---|---|
| Approval Agency | CE, cURus |
| Load Current | 12 A |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Output Type | DC |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 32 V |
| Voltage - Input [Min] | 3.5 V |
| Voltage - Load [Max] | 200 V |
| Voltage - Load [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
6312AXX Series
Solid State SPST-NO (1 Form A)
