MJ1-2510-SMT-TR

Active

CUI Devices

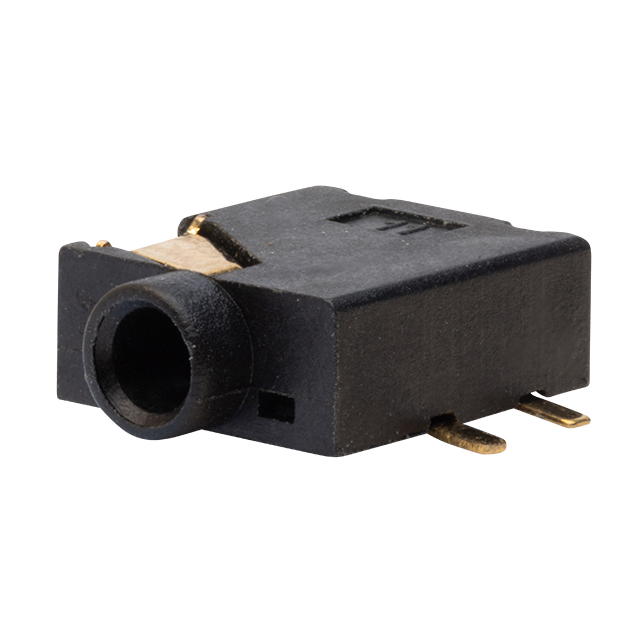

CONN JACK MONO 2.5MM SMD R/A

Search across all available documentation for this part.

Active

CUI Devices

CONN JACK MONO 2.5MM SMD R/A

Technical Specifications

Parameters and characteristics for this part

Specification	MJ1-2510-SMT-TR

Actual Diameter [diameter]	2.6 mm
Actual Diameter [diameter]	0.102 in
Body Color	Black
Connector Type	Phone Jack
Contact Material	Copper Alloy, Brass
Contact Material - Plating [custom]	Gold
Current Rating (Amps)	1 A
Features	Board Guide
Gender	Female
Housing Material	Polyamide (PA6T), Nylon 6T
Industry Recognized Mating Diameter	0.094 in
Industry Recognized Mating Diameter	2.5 mm
Industry Recognized Mating Diameter	3 /32"
Internal Switch(s)	Single Switch
Mounting Type	Surface Mount, Right Angle
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Signal Lines	Mono
Termination	Solder
Voltage - Rated	12 VDC

Part	Connector Type	Housing Material	Gender	Actual Diameter [diameter]	Actual Diameter [diameter]	Contact Material - Plating [custom]	Voltage - Rated	Body Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current Rating (Amps)	Signal Lines	Termination	Number of Positions/Contacts	Features	Contact Material	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Shielding	Internal Switch(s)
CUI Devices MJ1-3510-SMT-TR	Phone Jack	Polyamide (PA6T) Nylon 6T	Female	0.142 in	3.6 mm	Gold	16 V	Black	-25 °C	85 °C	Surface Mount Right Angle	300 mA	Mono	Solder	2 Conductors 3 Conductors	Board Guide	Brass Copper Alloy	0.141 "	0.125 "	3.5 mm	Unshielded	Single Switch
CUI Devices MJ1-2510-SMT-TR	Phone Jack	Polyamide (PA6T) Nylon 6T	Female	0.102 in	2.6 mm	Gold	12 VDC	Black	-25 °C	85 °C	Surface Mount Right Angle	1 A	Mono	Solder	2 Conductors 3 Conductors	Board Guide	Brass Copper Alloy	0.094 in	3 /32"	2.5 mm	Unshielded	Single Switch

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.37
	Digi-Reel®	1	$ 1.37
	Tape & Reel (TR)	3200	$ 0.69

General part information

2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Mono Connector Solder
