LF13WBJ-20S
ActiveHirose Electric USA, Inc.

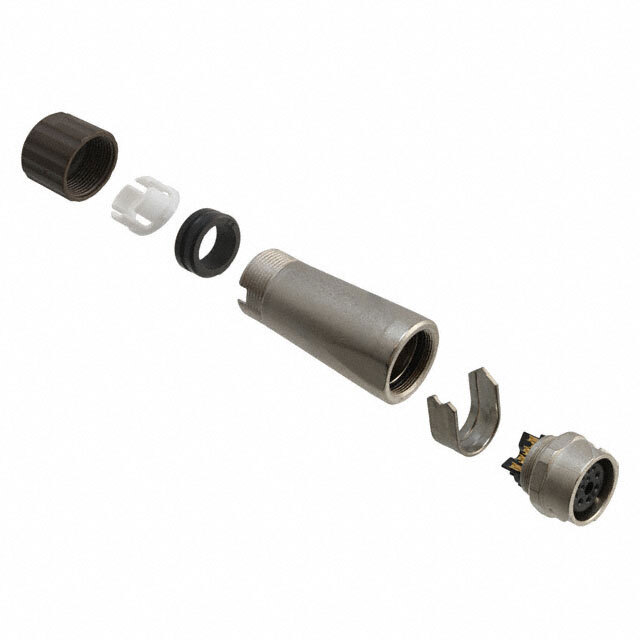

CONN JACK FMALE 20P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LF13WBJ-20S
ActiveHirose Electric USA, Inc.
CONN JACK FMALE 20P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LF13WBJ-20S |
|---|---|
| Applications | Telecommunications, Industrial |
| Backshell Material, Plating | Nickel, Zinc Alloy |
| Color | Brown, Silver |
| Connector Type | Female Sockets, Jack |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 0.203 Ám |
| Contact Finish Thickness - Mating | 8 Áin |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 2 A |
| Fastening Type | Bayonet Lock |
| Features | Backshell, Strain Relief, Clamp |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 20 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | 13 |
| Shielding | Shielded |
| Voltage Rating | 30 VAC, 42 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 25.21 | |
| 10 | $ 21.42 | |||
| 25 | $ 20.08 | |||
| 50 | $ 19.12 | |||
| 100 | $ 18.21 | |||
| 250 | $ 17.07 | |||
| 500 | $ 16.26 | |||
Description
General part information
LF13WBJ Series
20 Position Circular Connector Jack, Female Sockets Solder Cup
