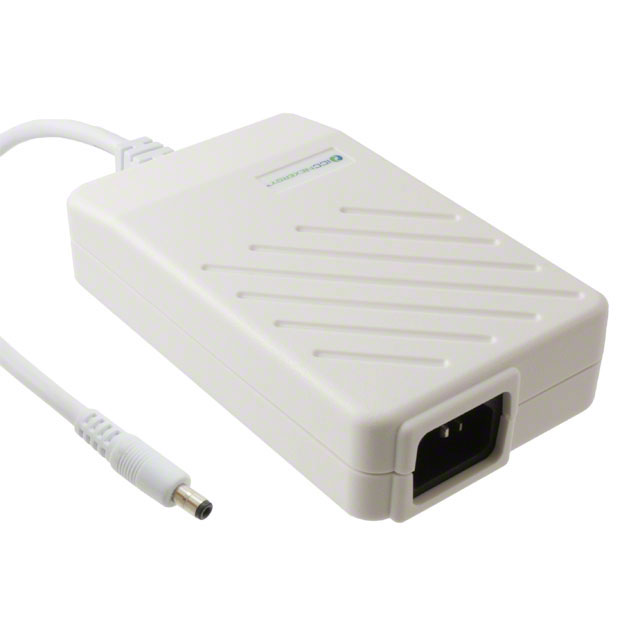

MW4012-760F-NC-WH
ObsoleteInventus Power
AC/DC DESKTOP ADAPTER 12V 40W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MW4012-760F-NC-WH
ObsoleteInventus Power
AC/DC DESKTOP ADAPTER 12V 40W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MW4012-760F-NC-WH |
|---|---|
| Applications | Medical |
| Cord Length | 60 in |
| Cord Length | 1.52 m |
| Current - Output (Max) [Max] | 3.3 A |
| Efficiency | Level V |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 300 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 40 W |
| Region Utilized | International |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [x] | 5 in |
| Size / Dimension [y] | 3 " |
| Size / Dimension [y] | 76.2 mm |
| Size / Dimension [z] | 33 mm |
| Size / Dimension [z] | 1.3 " |
| Voltage - Output | 12 V |
| Weight | 362.87 g |
| Weight | 0.8 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MW4012 Series
12V 40 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
