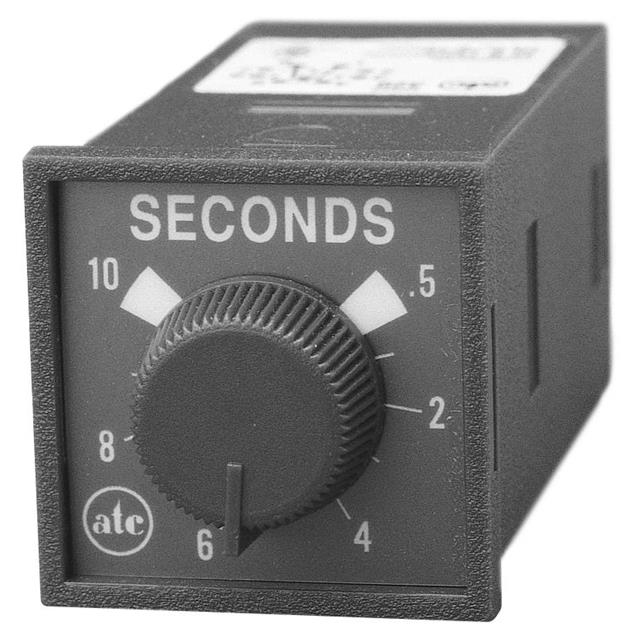

329A-364-Q-1-X
ActiveATC-Diversified Electronics
RELAY TIME DELAY 5SEC 5A 240V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
329A-364-Q-1-X
ActiveATC-Diversified Electronics
RELAY TIME DELAY 5SEC 5A 240V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 329A-364-Q-1-X |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating @ Voltage | 5 A |
| Delay Time | Fixed |
| Delay Time | 5 Sec |
| Function | On-Delay |
| Mounting Type | Socketable |
| Relay Type | Solid State Relay |
| Termination Style | Plug In, 8 Pin (Octal) |
| Timing Adjustment Method | Hand Dial |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply | 120 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 152.15 | |
Description
General part information
329A-364 Series
On-Delay Time Delay Relay DPDT (2 Form C) Fixed, 5 Sec Delay 5A @ 240VAC/30VDC Socketable
Documents
Technical documentation and resources
