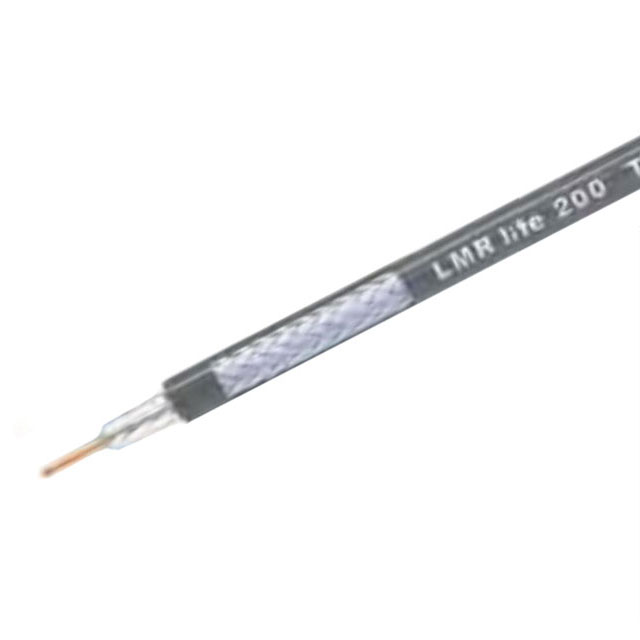

LMR-LW200

Active

Amphenol Times Microwave Systems

STANDARD CABLE, ALUMINUM BRAID,

Search across all available documentation for this part.

Active

Amphenol Times Microwave Systems

STANDARD CABLE, ALUMINUM BRAID,

Technical Specifications

Parameters and characteristics for this part

Specification	LMR-LW200

Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	2.95 mm
Dielectric Diameter [diameter]	0.116 in
Dielectric Material	Foam Polyethylene (FPE)
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	0.195 in
Jacket (Insulation) Diameter [diameter]	4.95 mm
Jacket (Insulation) Material	Polyethylene (PE)
Jacket Color	Black
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Material	Aluminum
Shield Type	Braid
VoP, Velocity of Propagation	83

Part	Conductor Material	Impedance	Dielectric Material	Shield Type	VoP, Velocity of Propagation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Conductor Strand	Cable Type	Jacket Color	Operating Temperature [Max]	Operating Temperature [Min]	Shield Material
Amphenol Times Microwave Systems LMR-LW240	Copper Bare	50 Ohms	Foam Polyethylene (FPE)	Braid	83	0.24 in	6.1 mm	Polyethylene (PE)	3.81 mm	0.15 in	Solid	Coaxial	Black	85 °C	-40 °C	Aluminum
Amphenol Times Microwave Systems LMR-LW200	Copper Bare	50 Ohms	Foam Polyethylene (FPE)	Braid	83	0.195 in	4.95 mm	Polyethylene (PE)	2.95 mm	0.116 in	Solid	Coaxial	Black	85 °C	-40 °C	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	10000	$ 0.53

General part information

Coaxial Cable 50 Ohms
