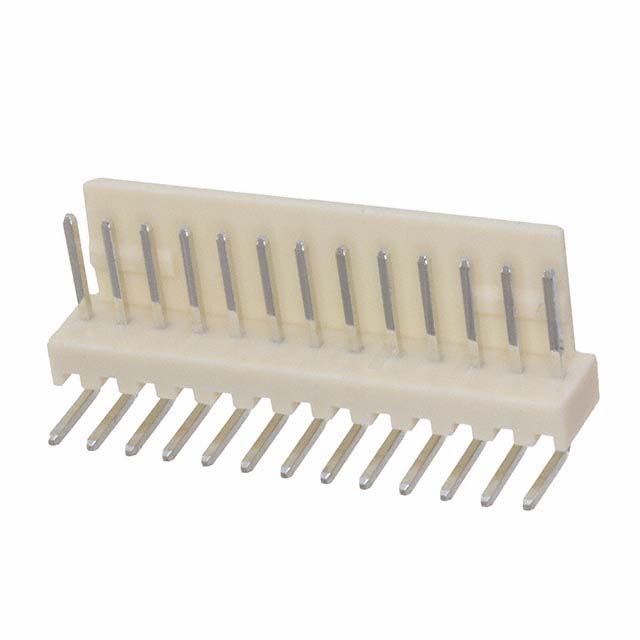

LHA-13-TRA

Active

Adam Tech

CONN HEADER R/A 13POS 2.54MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER R/A 13POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	LHA-13-TRA

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	7 mm
Contact Length - Mating	0.276 in
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	White
Insulation Height	5.8 mm
Insulation Height	0.228 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole, Right Angle
Number of Positions	13
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

Part	Mounting Type	Contact Finish - Post	Number of Positions Loaded	Termination	Number of Rows	Connector Type	Contact Type	Current Rating (Amps)	Insulation Height	Insulation Height	Insulation Color	Shrouding	Number of Positions	Insulation Material	Contact Shape	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Fastening Type	Pitch - Mating	Pitch - Mating	Style	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]
Adam Tech LHA-13-TRA	Through Hole Right Angle	Tin	All	Solder	1	Header	Male Pin	3 A	5.8 mm	0.228 in	White	Shrouded - 1 Wall	13	Polyamide (PA66) Nylon 6/6	Square	250 VAC	-40 °C	105 ░C	UL94 V-2	7 mm	0.276 in	Friction Lock	0.1 in	2.54 mm	Board to Cable/Wire	Brass	0.134 in	3.4 mm
