EDZ1550/5

Active

On Shore Technology Inc.

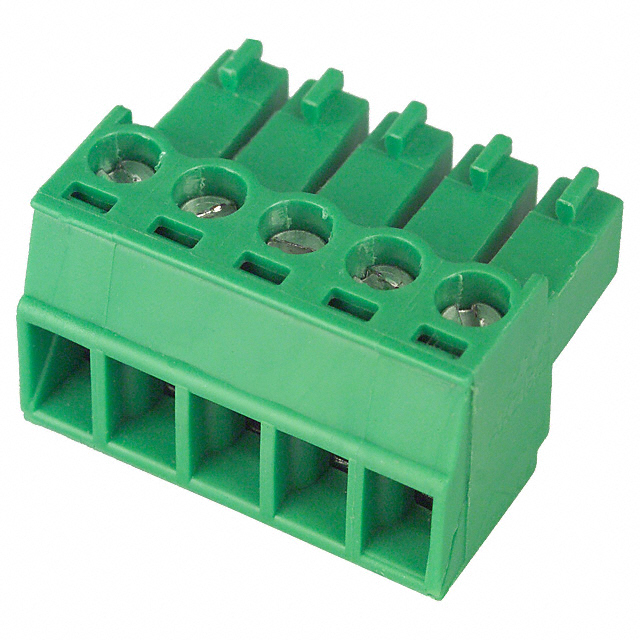

TERM BLOCK PLUG 5POS STR 3.81MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ED Part Number Breakdown

EDZ1550/5

Active

On Shore Technology Inc.

TERM BLOCK PLUG 5POS STR 3.81MM

Deep-Dive with AI

DocumentsDatasheet ED Part Number Breakdown

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EDZ1550/5

Color	Green
Contact Material	Copper Tin Alloy
Housing Material	Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	0.15 in
Pitch [x]	3.81 mm
Positions Per Level	5
Termination Style	Screw
Torque - Screw	0.4 Nm
Torque - Screw	3.5 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	16 AWG
Wire Gauge or Range - mm˛	1.5 mm˛
Wire Strip Length	7 mm

EDZ1550 Series

Part	Termination Style	Wire Strip Length	Number of Levels	Mounting Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Type	Torque - Screw	Torque - Screw	Positions Per Level	Wire Gauge or Range - mm˛	Number of Positions	Color	Housing Material	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Pitch [x]	Pitch [x]	Voltage - UL	Wire Gauge or Range - mm²	Number of Positions
On Shore Technology Inc. EDZ1550/14	Screw	7 mm	1	Free Hanging (In-Line)	Copper Tin Alloy	-30 ░C	105 ░C	Plug Female Sockets	0.4 Nm	3.5 Lb-In	14	1.5 mm˛	14	Green	Polyamide (PA) Nylon	28 AWG	16 AWG	0.15 in	3.81 mm	300 V
On Shore Technology Inc. EDZ1550/2	Screw	7 mm	1	Free Hanging (In-Line)	Copper Tin Alloy	-30 ░C	105 ░C	Plug Female Sockets	0.4 Nm	3.5 Lb-In	2	1.5 mm˛	2	Green	Polyamide (PA) Nylon	28 AWG	16 AWG	0.15 in	3.81 mm	300 V
On Shore Technology Inc. EDZ1550/12	Screw	7 mm	1	Free Hanging (In-Line)	Copper Tin Alloy	-30 ░C	105 ░C	Plug Female Sockets	0.4 Nm	3.5 Lb-In	12	1.5 mm˛	12	Green	Polyamide (PA) Nylon	28 AWG	16 AWG	0.15 in	3.81 mm	300 V
On Shore Technology Inc. EDZ1550/9	Screw	7 mm	1	Free Hanging (In-Line)	Copper Tin Alloy	-30 ░C	105 ░C	Plug Female Sockets	0.4 Nm	3.5 Lb-In	9		9	Green	Polyamide (PA) Nylon	28 AWG	16 AWG	0.15 in	3.81 mm	300 V	1.5 mm²
On Shore Technology Inc. EDZ1550/11	Screw	7 mm	1	Free Hanging (In-Line)	Copper Tin Alloy	-30 ░C	105 ░C	Plug Female Sockets	0.4 Nm	3.5 Lb-In	11	1.5 mm˛	11	Green	Polyamide (PA) Nylon	28 AWG	16 AWG	0.15 in	3.81 mm	300 V
On Shore Technology Inc. EDZ1550/10	Screw	7 mm	1	Free Hanging (In-Line)	Copper Tin Alloy	-30 ░C	105 ░C	Plug Female Sockets	0.4 Nm	3.5 Lb-In	10	1.5 mm˛	10	Green	Polyamide (PA) Nylon	28 AWG	16 AWG	0.15 in	3.81 mm	300 V
On Shore Technology Inc. EDZ1550/16	Screw	7 mm	1	Free Hanging (In-Line)	Copper Tin Alloy	-30 ░C	105 ░C	Plug Female Sockets	0.4 Nm	3.5 Lb-In	16	1.5 mm˛		Green	Polyamide (PA) Nylon	28 AWG	16 AWG	0.15 in	3.81 mm	300 V		16
On Shore Technology Inc. EDZ1550/5	Screw	7 mm	1	Free Hanging (In-Line)	Copper Tin Alloy	-30 ░C	105 ░C	Plug Female Sockets	0.4 Nm	3.5 Lb-In	5	1.5 mm˛		Green	Polyamide (PA) Nylon	28 AWG	16 AWG	0.15 in	3.81 mm	300 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.93
		10	$ 3.76
		25	$ 3.52
		50	$ 3.13
		200	$ 3.06
		400	$ 2.82
		600	$ 2.55
		1000	$ 2.26

Description

General part information

EDZ1550 Series

5 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) Free Hanging (In-Line)
