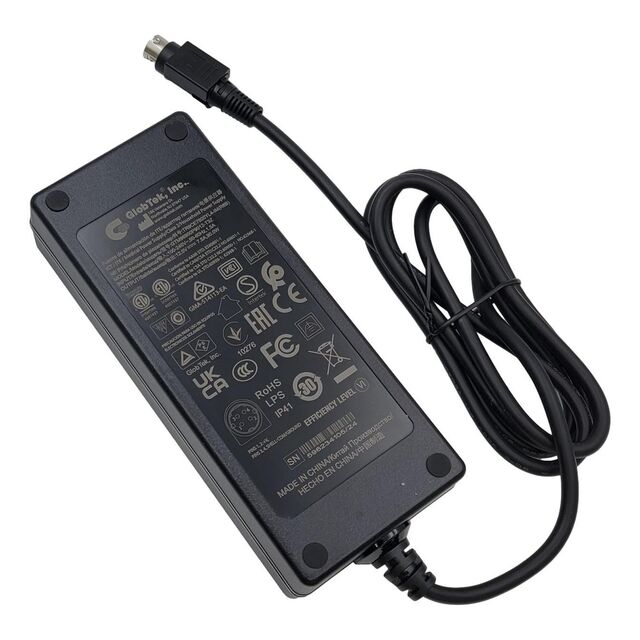

TR9CE7500YL4-IM(R6B)

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 12V 90W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TR9CE7500YL4-IM(R6B)

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 12V 90W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CE7500YL4-IM(R6B)

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	cETLus, ETL, CB, UKRSepro, VCCI, LPS, CCC, S-Mark, RCM, EAC, PSE, CE
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	7.5 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Output Connector	4 Pin
Output Connector	Power DIN
Power (Watts)	90 W
Region Utilized	International
Size / Dimension [x]	149.3 mm
Size / Dimension [x]	5.88 in
Size / Dimension [y]	62.8 mm
Size / Dimension [y]	2.47 in
Size / Dimension [z]	1.34 in
Size / Dimension [z]	34 mm
Standard Number	1310, 60601-1-2, 62368-1, 60335-1, 60601-1-11, 61347-1, 60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

TR9CE7500 Series

Part	Input Connector	Input Type	Efficiency	Voltage - Output	Output Connector [diameter]	Output Connector [x]	Output Connector	Cord Length	Cord Length	Polarization	No Load Power Consumption [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Form	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Approval Agency	Applications	Region Utilized	Power (Watts)	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Output Connector
GlobTek, Inc. TR9CE7500LLP-IM(R6B)	IEC 320-C14	Cord	CoC Tier 2 Level VI	12 V	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	1.2 m	47.2 in	Positive Center	150 mW	90 VAC	264 VAC	Desktop (Class I)	7.5 A	149.3 mm	62.8 mm	2.47 in	1.34 in	5.88 in	34 mm	CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UKRSepro VCCI	Household Appliances ITE (Commercial) Medical	International	90 W
GlobTek, Inc. TR9CE7500FILRPNIMR6B	IEC 320-C14	Cord	CoC Tier 1 Level VI	12 V	2.5 mm 5.5 mm	11 mm	Barrel Plug	1.2 m	47.2 in	Positive Center	150 mW	90 VAC	264 VAC	Desktop (Class I)	7.5 A	149.4 mm	62.8 mm	2.47 in	1.34 in	5.88 in	34 mm	CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UKRSepro VCCI	Household Appliances ITE (Commercial) Medical	International	90 W	60335-1 60601-1 60950-1 62368-1	-10 °C	40 °C
GlobTek, Inc. TR9CE7500LCP-IM(R6B)	IEC 320-C14	Cord	Level VI	12 V	2.5 mm 5.5 mm	11 mm	Barrel Plug	1.2 m	47.2 in	Positive Center	150 mW	90 VAC	264 VAC	Desktop (Class I)	7.5 A	149.3 mm	62.8 mm	2.47 in	1.34 in	5.88 in	34 mm	CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UKRSepro VCCI	Household Appliances ITE (Commercial) Medical	International	90 W	1310 60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1
GlobTek, Inc. TR9CE7500YL4-IM(R6B)	IEC 320-C14	Cord	CoC Tier 2 Level VI	12 V			Power DIN	1.2 m	47.2 in		150 mW	90 VAC	264 VAC	Desktop (Class I)	7.5 A	149.3 mm	62.8 mm	2.47 in	1.34 in	5.88 in	34 mm	CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UKRSepro VCCI	Household Appliances ITE (Commercial) Medical	International	90 W	1310 60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1			4 Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 49.32
		5	$ 45.35
		20	$ 42.19
		40	$ 40.70
		60	$ 39.85
		100	$ 38.80
		260	$ 36.92

Description

General part information

TR9CE7500 Series

12V 90 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
