B11B-PH-SM4-TB

Active

JST Sales America Inc.

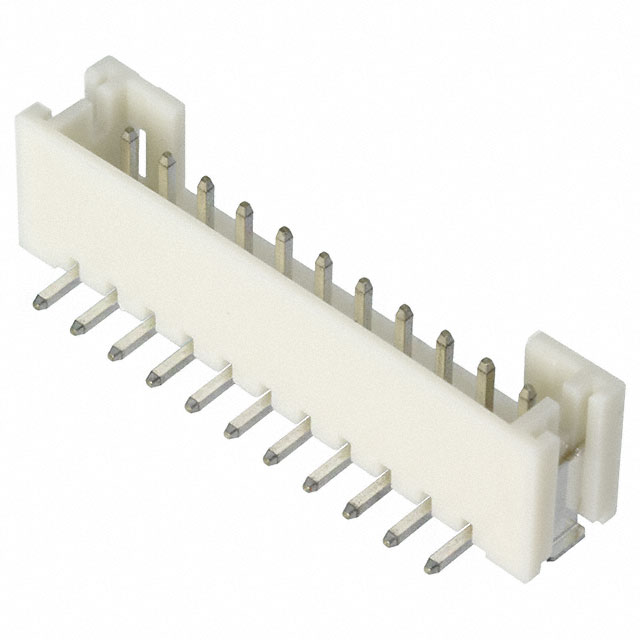

CONN HEADER SMD 11POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD 11POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	B11B-PH-SM4-TB

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.13 in
Contact Length - Mating	3.3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Detent Lock
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.26 in
Insulation Height	6.6 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Heights	8.6 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	11
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 V

Part	Fastening Type	Pitch - Mating [x]	Pitch - Mating [x]	Mounting Type	Insulation Color	Style	Termination	Shrouding	Material Flammability Rating	Contact Finish - Post	Contact Type	Contact Material	Voltage Rating	Contact Shape	Features	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Rows	Mated Stacking Heights	Contact Length - Mating	Contact Length - Mating	Number of Positions	Insulation Material	Current Rating (Amps)	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]
JST Sales America Inc. B11B-PH-SM4-TBT	Detent Lock	0.079 in	2 mm	Surface Mount	Natural	Board to Cable/Wire	Solder	Shrouded - 4 Wall	UL94 V-0	Tin	Male Pin	Copper Alloy	100 V	Square	Pick and Place Solder Retention	-25 °C	85 °C	Header	1	8.6 mm	0.13 in	3.3 mm	11	Nylon 6T Polyamide (PA6T)	2 A	All	0.26 in	6.6 mm
JST Sales America Inc. B11B-PH-KL	Detent Lock	0.079 in	2 mm	Through Hole	Gray	Board to Cable/Wire	Press-Fit Solder	Shrouded - 4 Wall	UL94 V-0	Tin	Male Pin	Copper Alloy	100 V	Square		-25 °C	85 °C	Header	1				11	Polyamide (PA66) Nylon 6/6	2 A	All	0.236 in	6 mm	0.134 in	3.4 mm
JST Sales America Inc. B11B-PH-SM4-TB	Detent Lock	0.079 in	2 mm	Surface Mount	Natural	Board to Cable/Wire	Solder	Shrouded - 4 Wall	UL94 V-0	Tin	Male Pin	Copper Alloy	100 V	Square	Solder Retention	-25 °C	85 °C	Header	1	8.6 mm	0.13 in	3.3 mm	11	Nylon 6T Polyamide (PA6T)	2 A	All	0.26 in	6.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 11 position 0.079" (2.00mm)
