1266A 0101000

Active

Belden Inc.

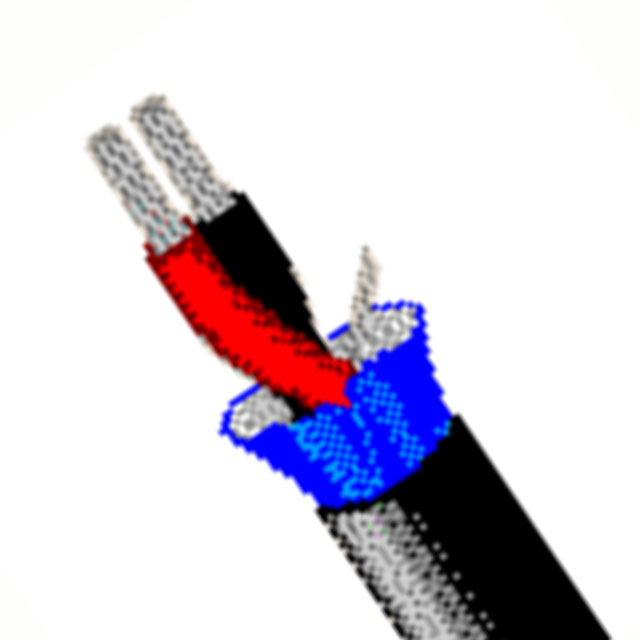

CABLE 2COND 22AWG BLACK SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 22AWG BLACK SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	1266A 0101000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	3.63 mm
Jacket (Insulation) Diameter [diameter]	0.143 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Length [x]	30.5 m, 152.4 m
Length [x]	100 ft, 500 '
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Wire Gauge	22 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Shield Coverage	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Shield Material	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Shield Type	Length	Length	Features	Cable Type	Length [x]	Length [x]
Belden Inc. 1266A 005U1000	-20 C	60 °C	22 AWG	100 %	Poly-Vinyl Chloride (PVC)	3.63 mm	0.143 in	2	Copper Tinned	0.02 in	0.508 mm	Green	Aluminum	7	30 AWG	Polypropylene (PP)	Foil	1000 ft	304.8 m	Drain Wire	Multi-Conductor
Belden Inc. 1266A 004U1000	-20 C	60 °C	22 AWG	100 %	Poly-Vinyl Chloride (PVC)	3.63 mm	0.143 in	2	Copper Tinned	0.02 in	0.508 mm	Yellow	Aluminum	7	30 AWG	Polypropylene (PP)	Foil	1000 ft	304.8 m	Drain Wire	Multi-Conductor
Belden Inc. 1266A 006U1000	-20 C	60 °C	22 AWG	100 %	Poly-Vinyl Chloride (PVC)	3.63 mm	0.143 in	2	Copper Tinned	0.02 in	0.508 mm	Blue	Aluminum	7	30 AWG	Polypropylene (PP)	Foil	1000 ft	304.8 m	Drain Wire	Multi-Conductor
Belden Inc. 1266A 0101000	-20 C	60 °C	22 AWG	100 %	Poly-Vinyl Chloride (PVC)	3.63 mm	0.143 in	2	Copper Tinned	0.02 in	0.508 mm	Black	Aluminum	7	30 AWG	Polypropylene (PP)	Foil	1000 ft	304.8 m	Drain Wire	Multi-Conductor	30.5 m 152.4 m	100 ft 500 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Black 22 AWG Foil 1000.0' (304.8m)
