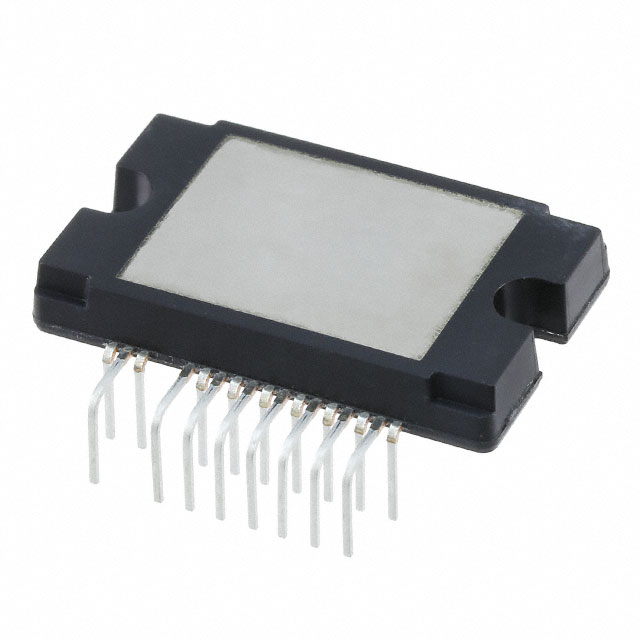

STK5Q4U352J-E

Obsolete

ON Semiconductor

IC HALF BRIDGE DRIVER 8A MODULE

Search across all available documentation for this part.

Obsolete

ON Semiconductor

IC HALF BRIDGE DRIVER 8A MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	STK5Q4U352J-E

Applications	AC Motors
Current - Output / Channel [custom]	8 A
Current - Peak Output	16 A
Fault Protection	UVLO, Current Limiting
Features	Status Flag
Interface	Logic
Load Type	Inductive
Mounting Type	Through Hole
Operating Temperature	150 °C
Output Configuration	Half Bridge (3)
Package / Case	Module
Supplier Device Package	Module
Technology	IGBT
Voltage - Load	400 V
Voltage - Supply [Max]	17.5 V
Voltage - Supply [Min]	12.5 V

Part	Voltage - Load	Current - Output / Channel [custom]	Operating Temperature	Current - Peak Output	Load Type	Technology	Features	Interface	Output Configuration	Fault Protection	Applications	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Mounting Type
ON Semiconductor STK5Q4U352J-E	400 V	8 A	150 °C	16 A	Inductive	IGBT	Status Flag	Logic	Half Bridge (3)	Current Limiting UVLO	AC Motors	Module	12.5 V	17.5 V	Module	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Half Bridge (3) Driver AC Motors IGBT Module
