E2213FS091

Obsolete

Pervasive Displays

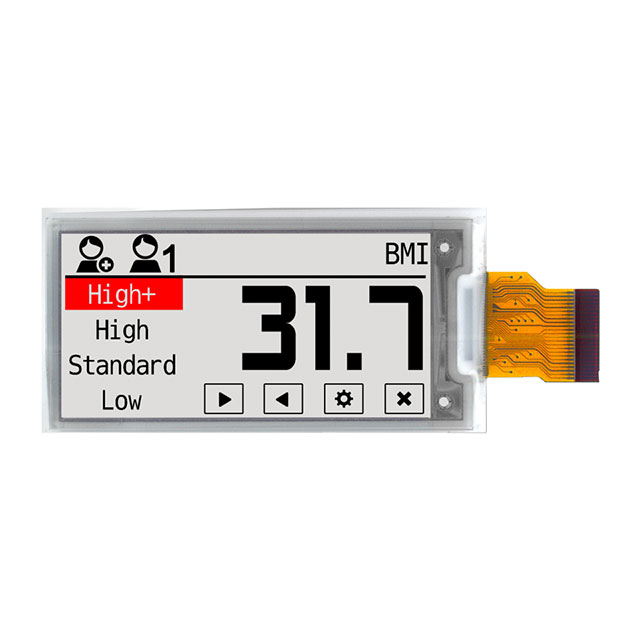

2.13" EPD, SPECTRA, W.ITC

Search across all available documentation for this part.

Obsolete

Pervasive Displays

2.13" EPD, SPECTRA, W.ITC

Technical Specifications

Parameters and characteristics for this part

Specification	E2213FS091

Backlight	Without Backlight
Diagonal Screen Size	2.13 in
Diagonal Screen Size	54.1 mm
Display Mode	Reflective
Display Type	TFT - Electronic Paper Display (EPD)
Dot Pitch [x]	0.23 mm
Dot Pitch [y]	0.23 mm
Dot Pixels [x]	212
Dot Pixels [y]	104
Graphics Color	Black, Red, White
Interface	SPI
Viewing Area [x]	48.55 mm
Viewing Area [y]	23.72 mm

Part	Viewing Area [y]	Viewing Area [x]	Display Type	Dot Pitch [x]	Dot Pitch [y]	Interface	Graphics Color	Diagonal Screen Size	Diagonal Screen Size	Dot Pixels [x]	Dot Pixels [y]	Backlight	Display Mode
Pervasive Displays E2213HS091	23.71 mm	48.55 mm	TFT - Color	0.23 mm	0.23 mm	SPI	Black White	53.74 mm	2.1 in	212	104
Pervasive Displays E2213PS0E2			TFT - Color	0.23 mm	0.23 mm	SPI	Black White	54.1 mm	2.13 in	212	104	Without Backlight
Pervasive Displays E2213FS091	23.72 mm	48.55 mm	TFT - Electronic Paper Display (EPD)	0.23 mm	0.23 mm	SPI	Black Red White	54.1 mm	2.13 in	212	104	Without Backlight	Reflective
Pervasive Displays E2213PS0E1			TFT - Color	0.23 mm	0.23 mm	SPI	Black White	54.1 mm	2.13 in	212	104	Without Backlight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Graphic LCD Display Module Reflective Black, Red, White TFT - Electronic Paper Display (EPD) SPI 2.13" (54.10mm) 212 x 104

Technical documentation and resources
